CenryKay RV24YN20S B102 1K Rotary Potentiometer with Knobs & Dials, 6mm Shaft, 20mm Length, 2-Pack | Precise Control for Audio & Circuits

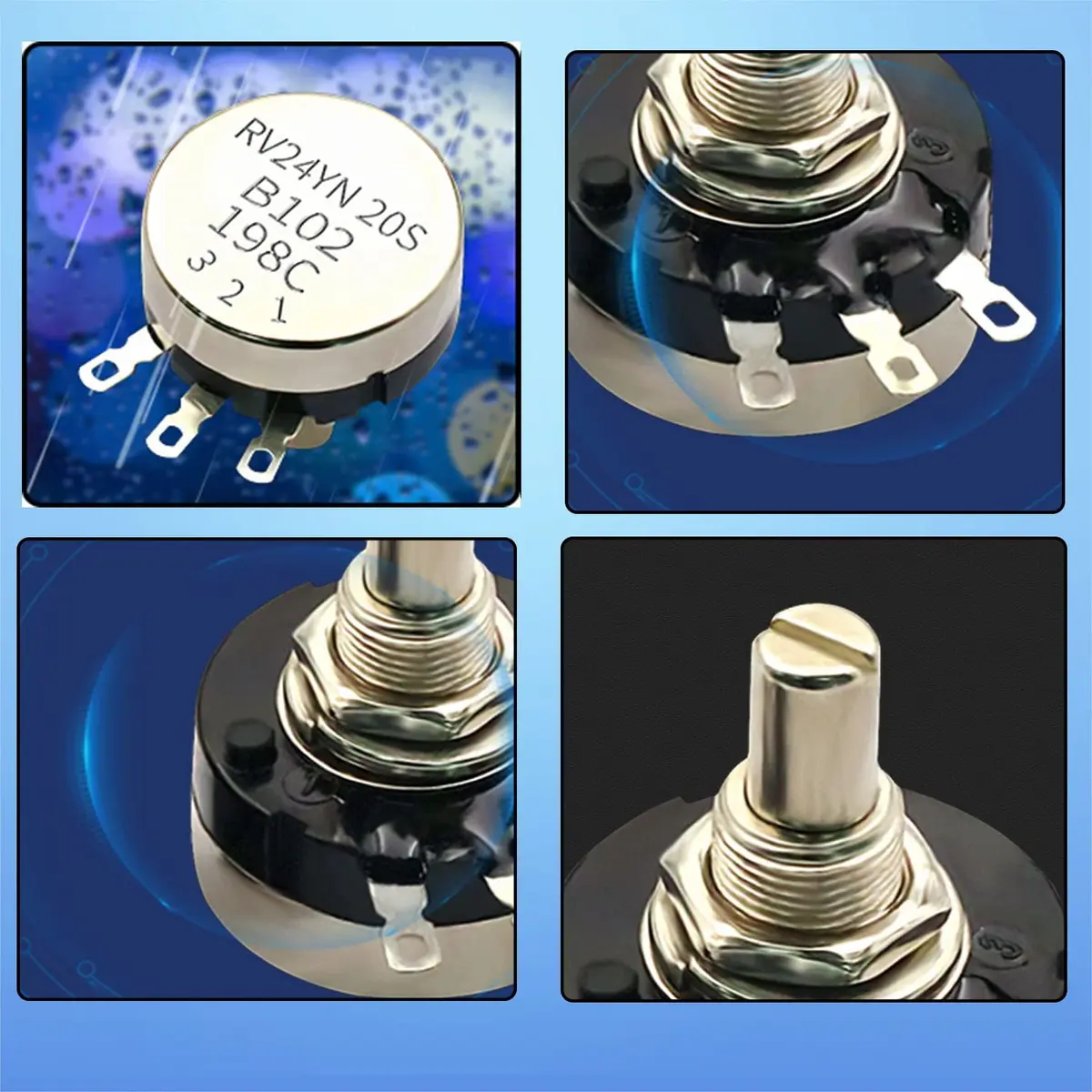

• Product name — potentiometer; model : rv24yn 20S/B102; Type : rotary potentiometer
• Resistance value — You can choose Ohm; resistance Tolerance : +/-10

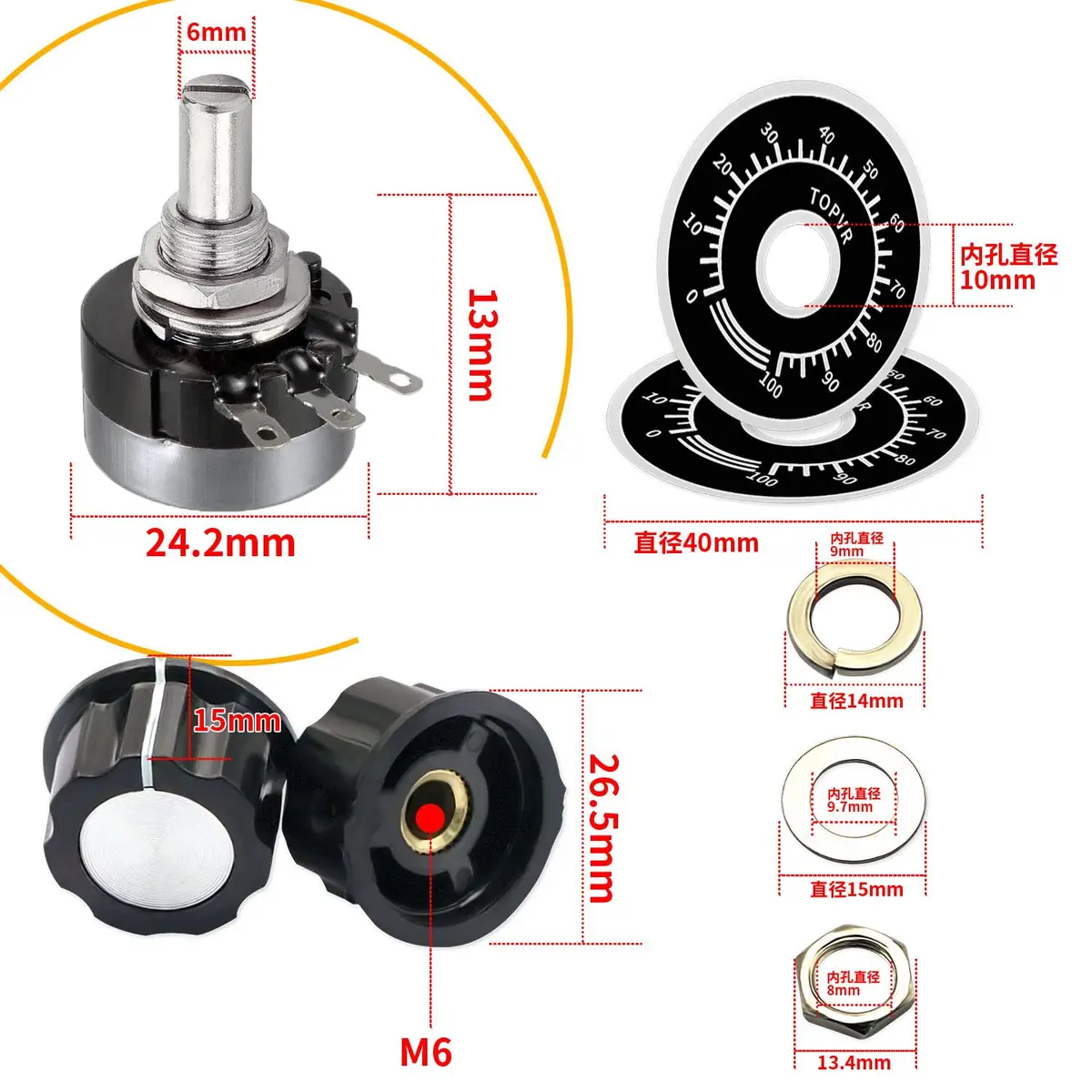

• Shaft diameter — 6 mm; standard shaft length: 20 mm; outer diameter: 24 mm;Total Size: 40 x 38mm/1. 6" x 1. 5"(Dial d*h); color : black, Silver Tone

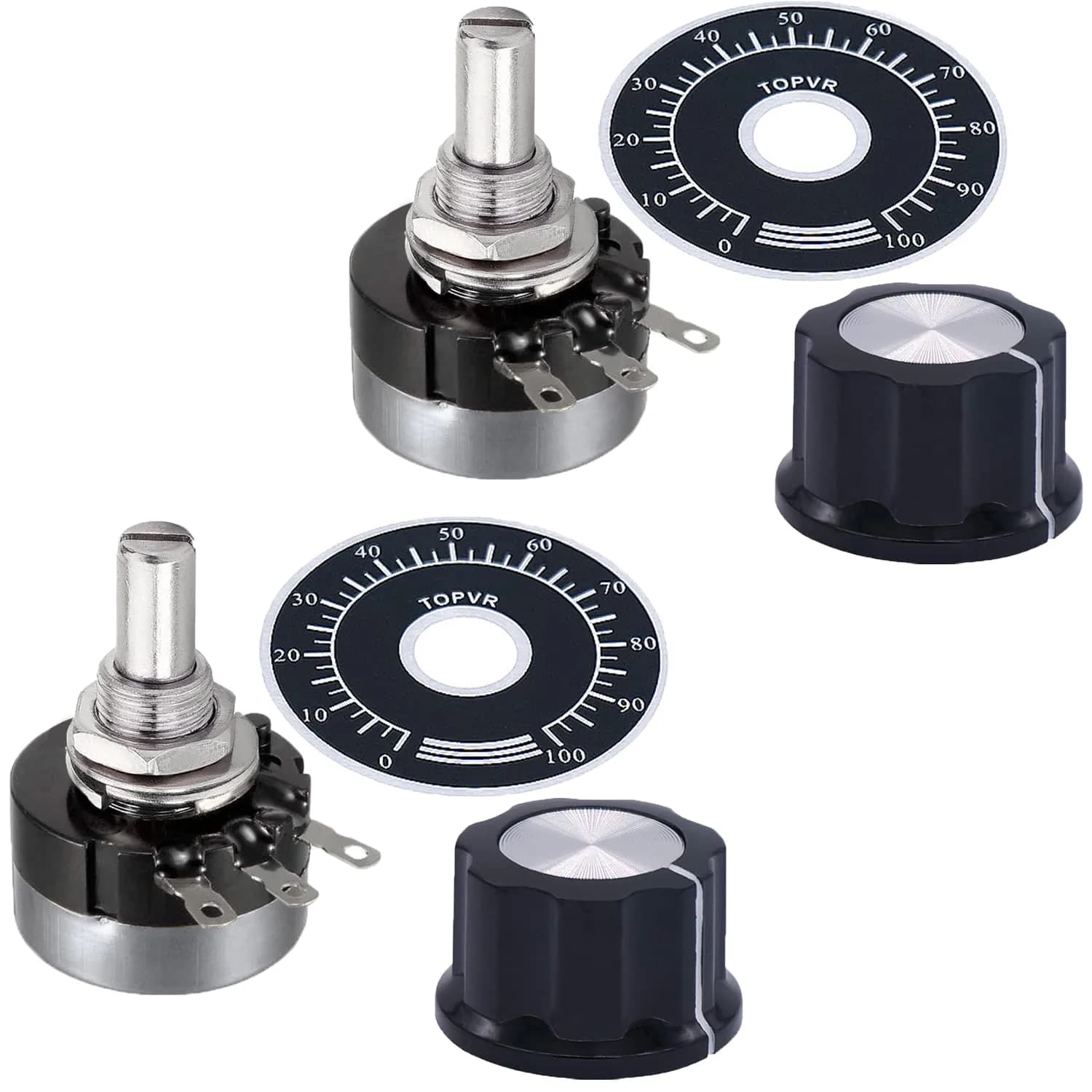

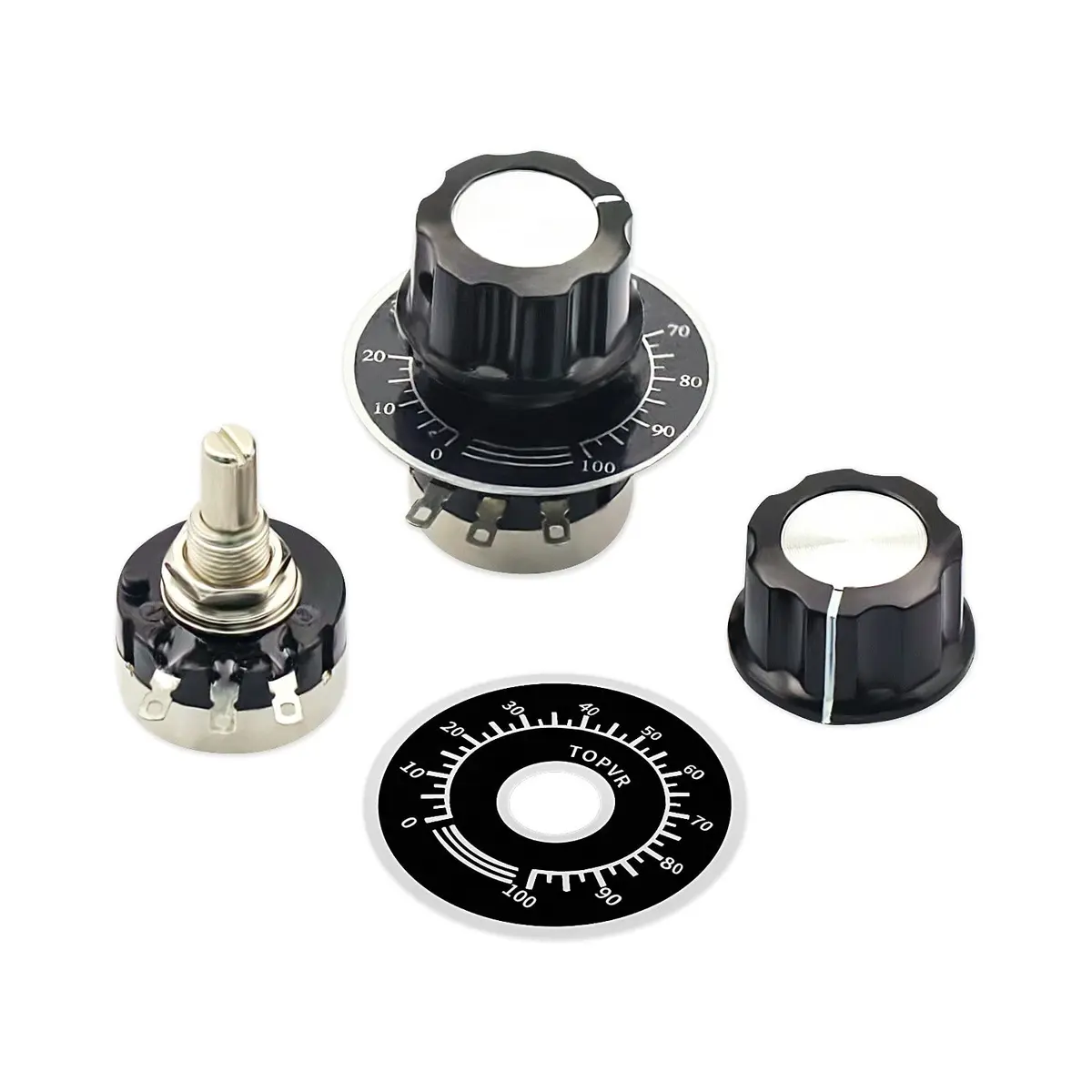

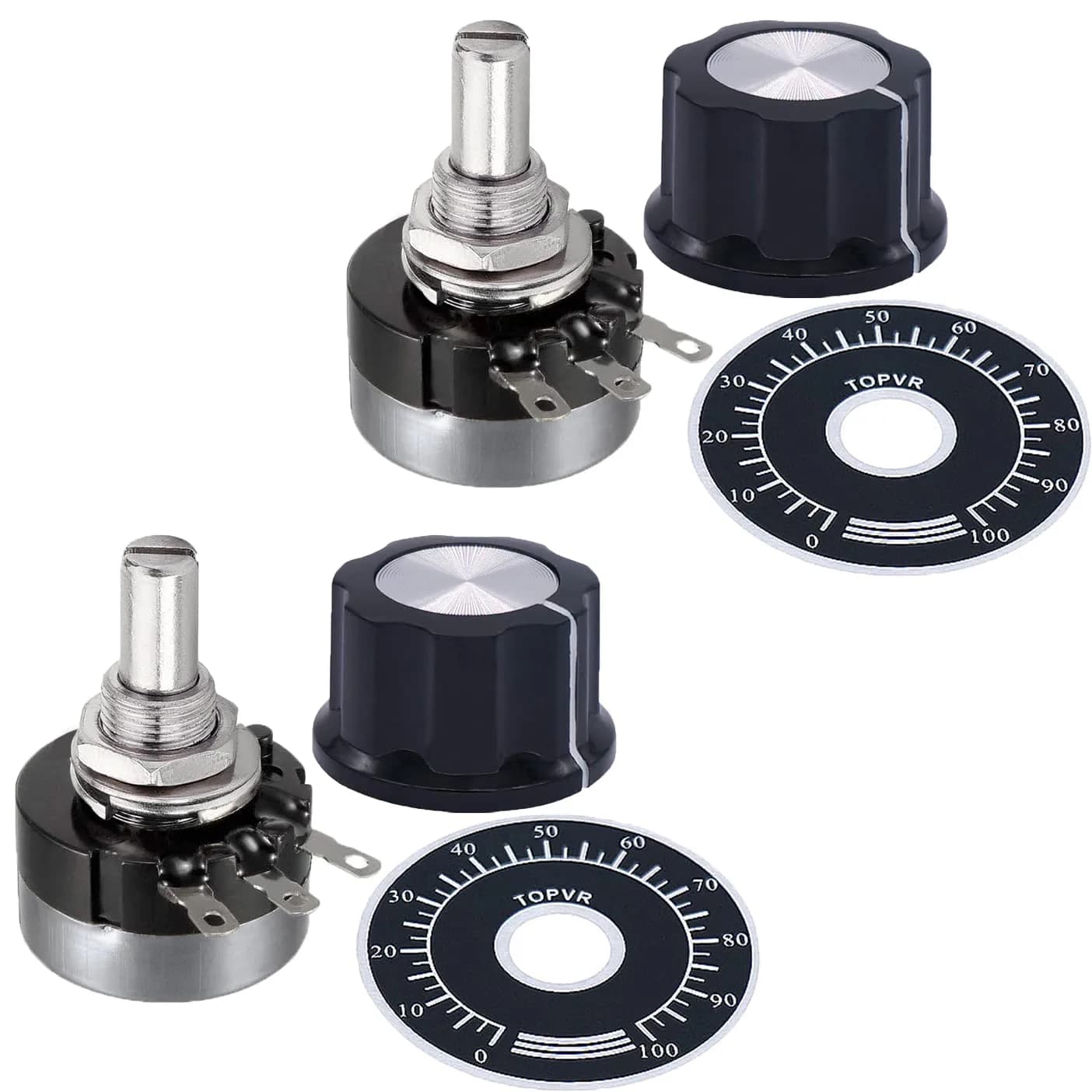

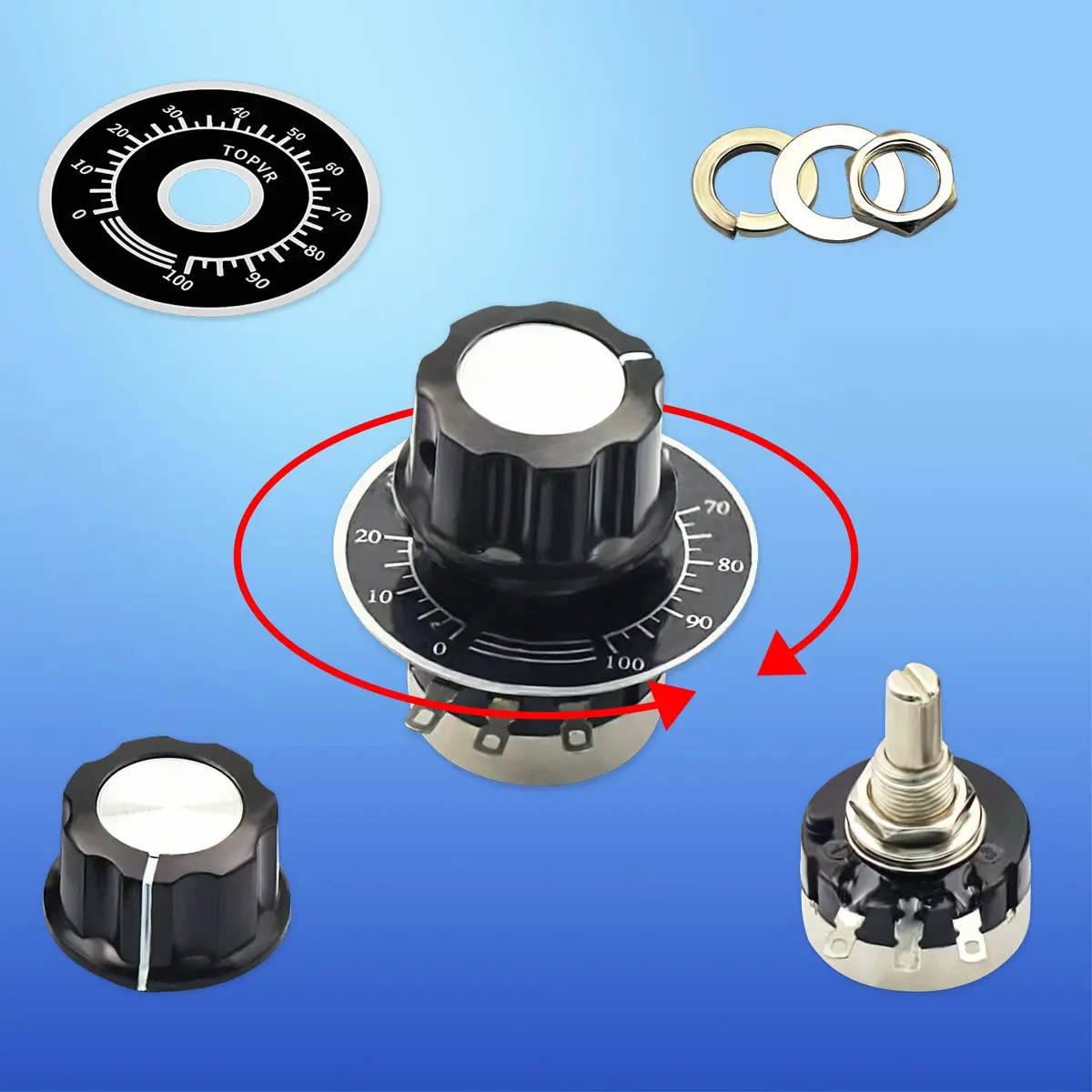

• Weight — 50G; package content : 2 x Potentiometer + 2 x A03 knob + 2 x dials
• Application — Single turn rotary taper potentiometer, with knob and a set screw, helps hold the knob in place and make adjustment very handy, ideal to adjust voice, timer, speed, temperature in all kinds of equipment's.

• Identify Shaft Compatibility — Confirm your project requires a 6mm diameter shaft potentiometer. If so, this CenryKay unit is compatible. Ensure the 20mm shaft length is sufficient for your panel or enclosure mounting needs.

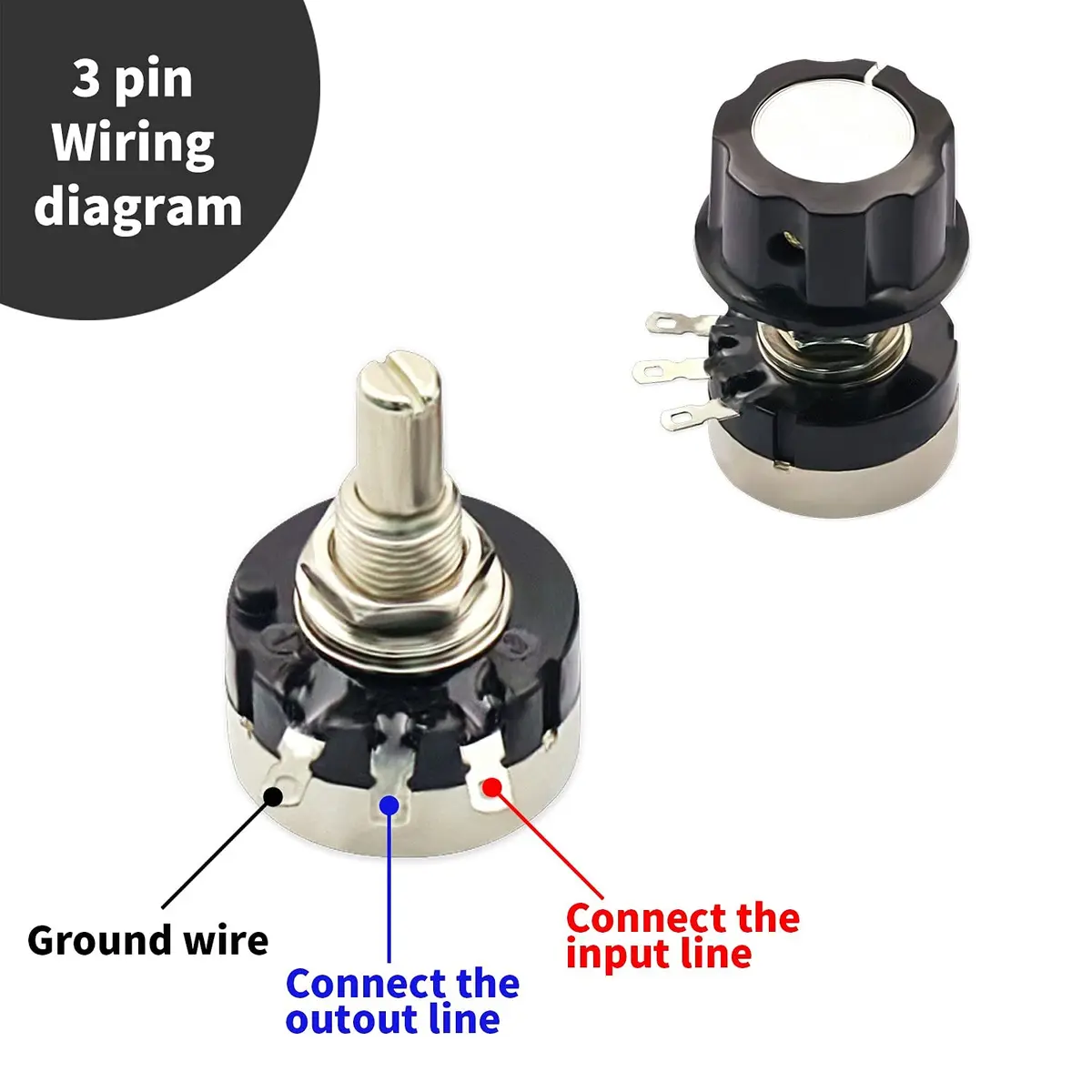

• Connect Potentiometer Terminals — Solder the outer two terminals to your circuit's input and output points for a linear taper. The middle terminal acts as the wiper, providing the variable resistance output. Consult your circuit diagram for specific wiring.

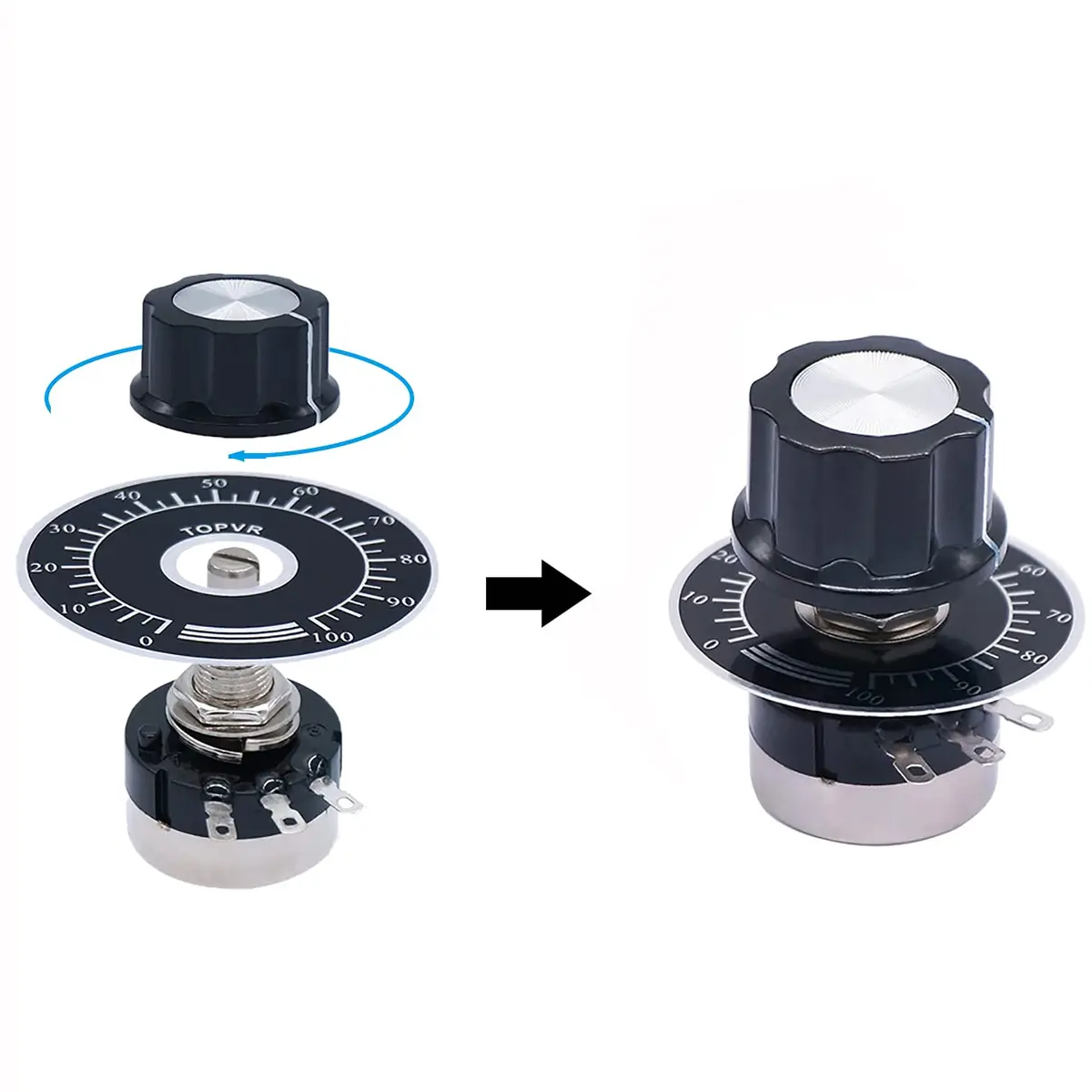

• Mount and Secure Knob — Insert the potentiometer shaft through your panel or PCB. Slide the included knob onto the shaft and press firmly. If a set screw is present on the knob, tighten it to secure the knob in place for adjustment.
• Calibrate Resistance — Rotate the knob to adjust the resistance output. Use a multimeter to verify the resistance changes smoothly between 0 ohms and 1K ohm (with +/-10% tolerance) as you turn the shaft, ensuring precise control for your application.
