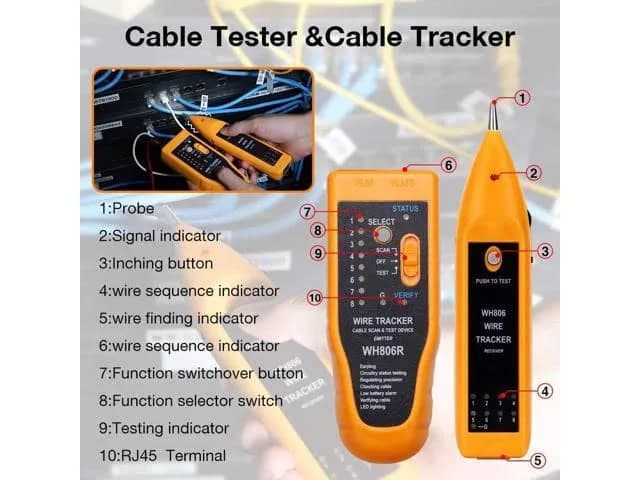

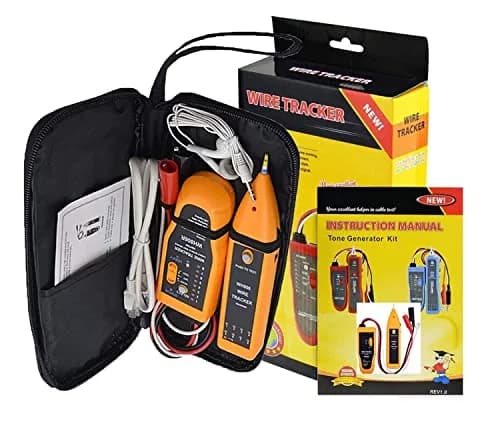

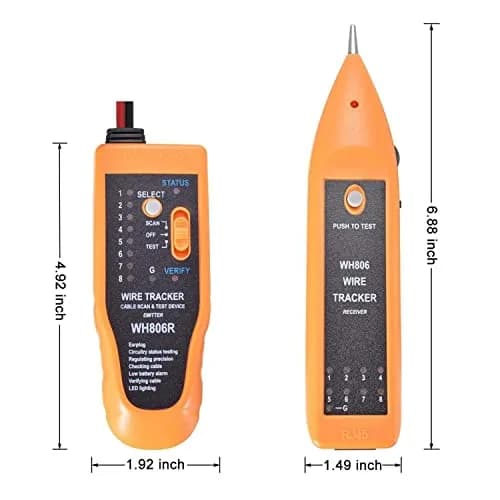

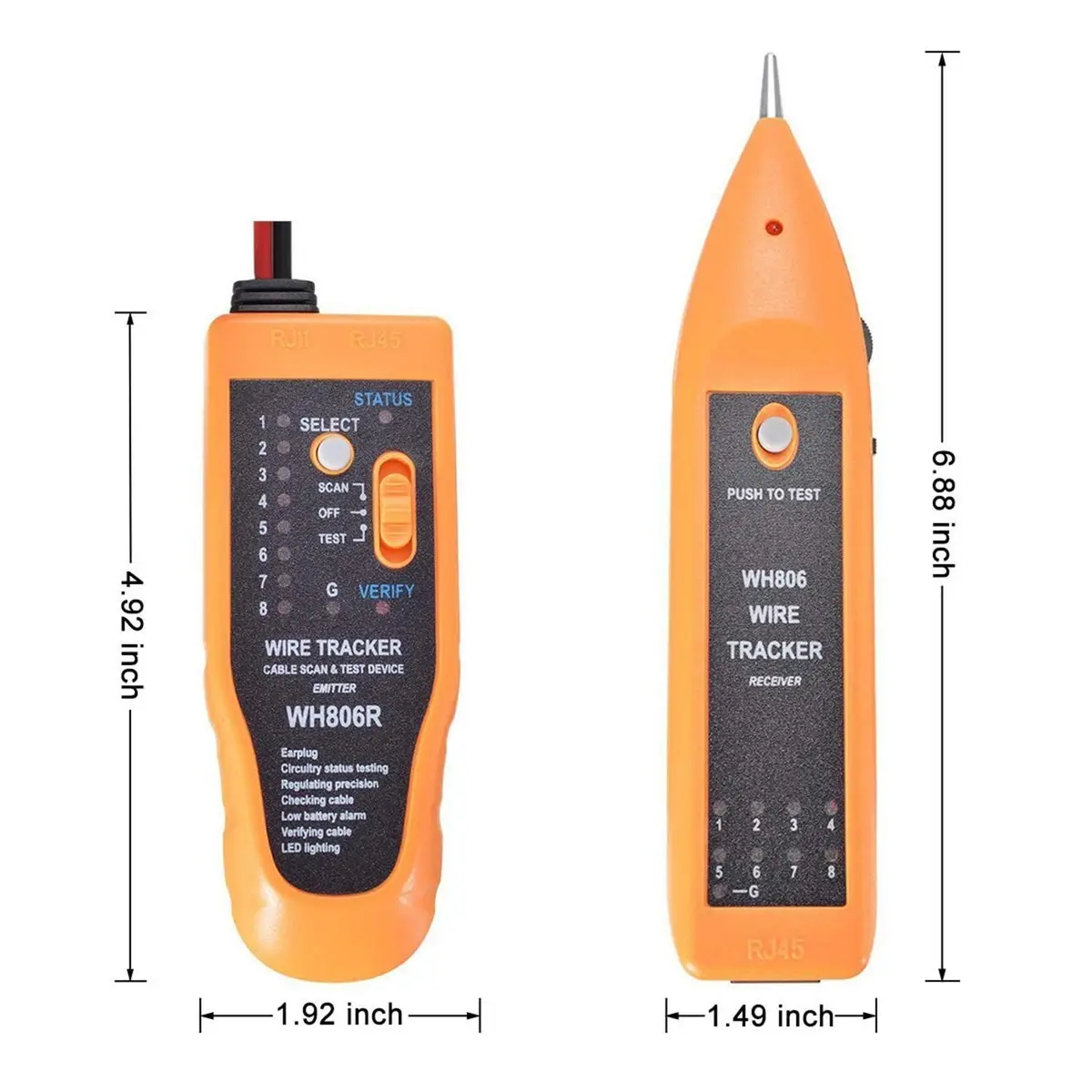

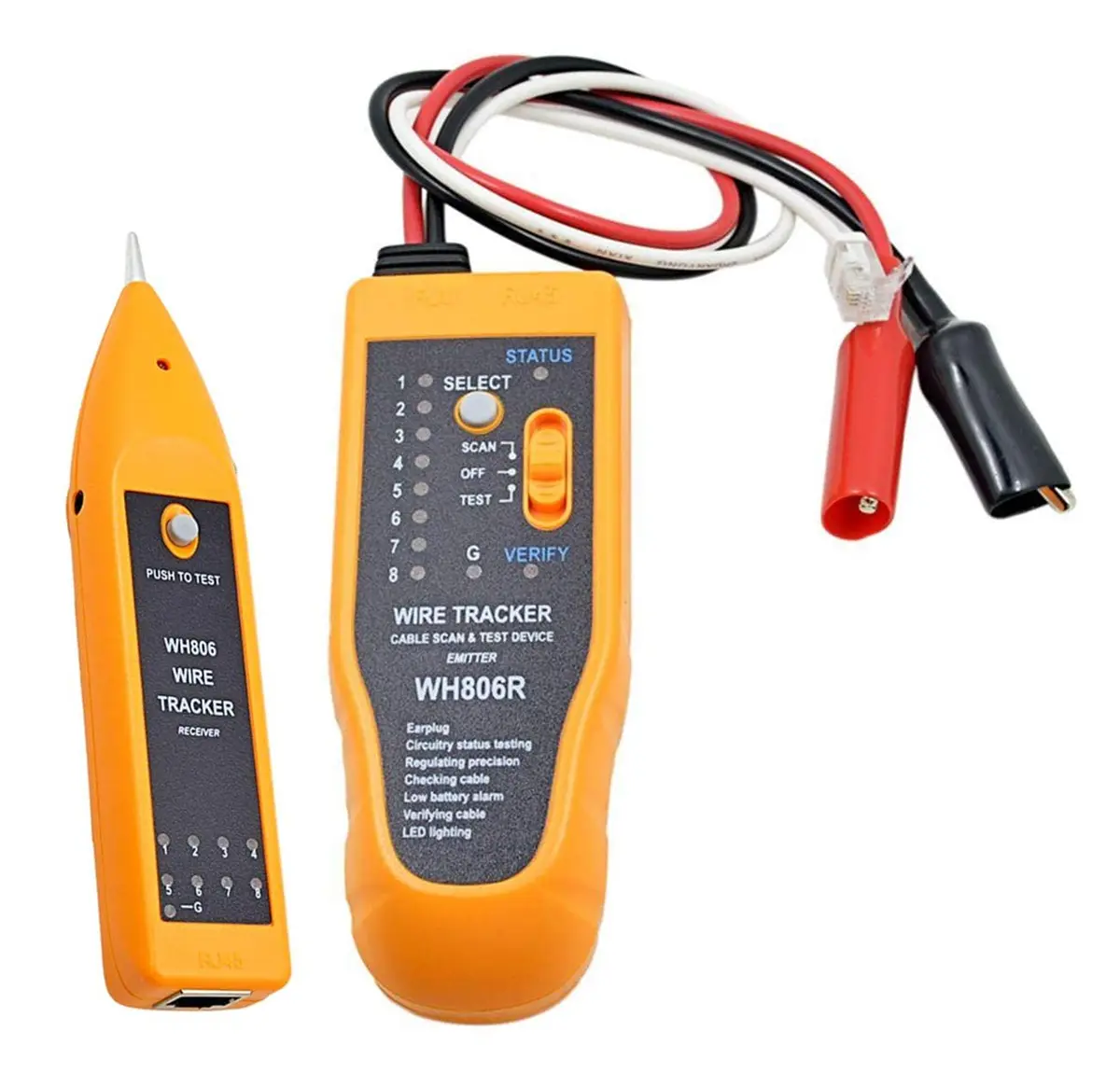

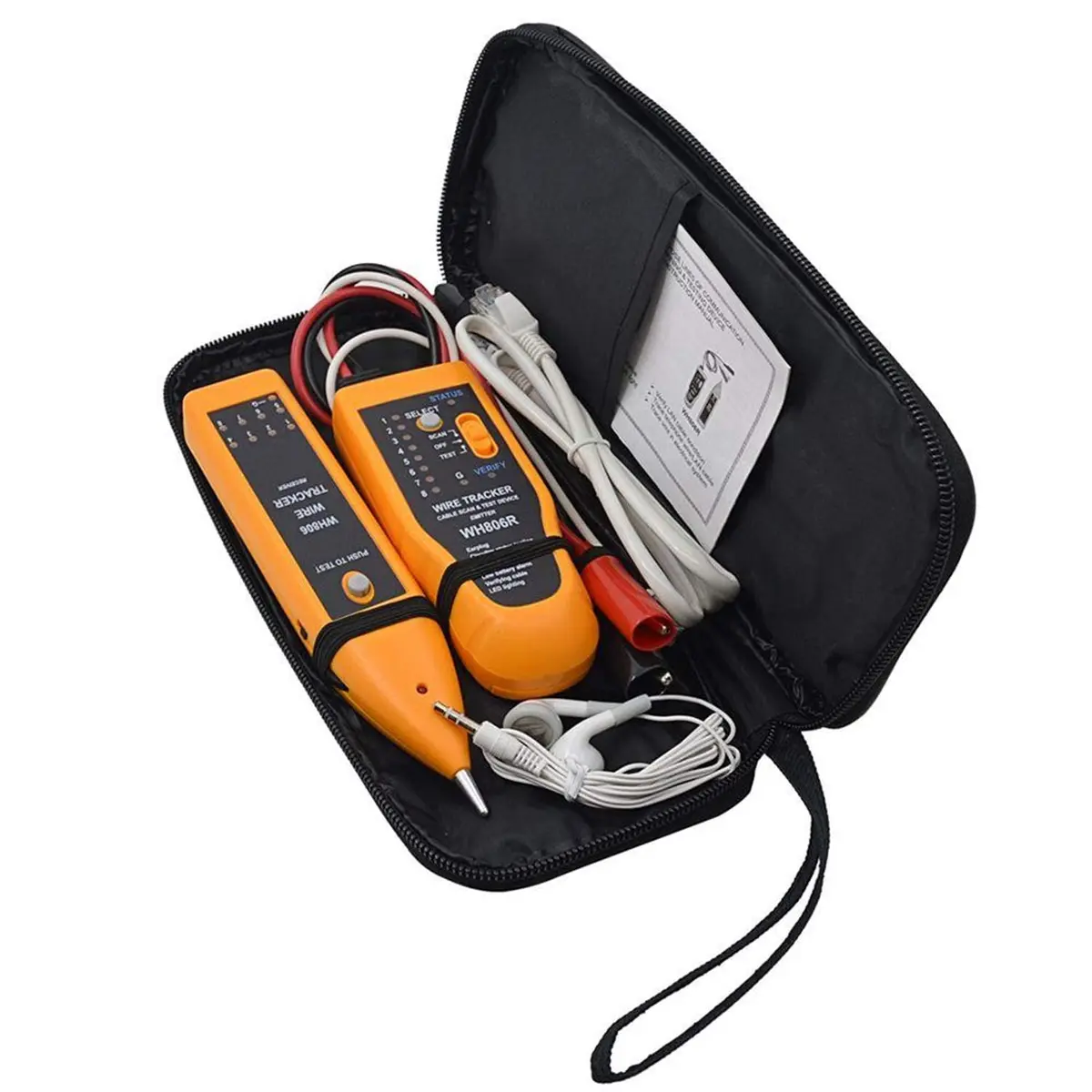

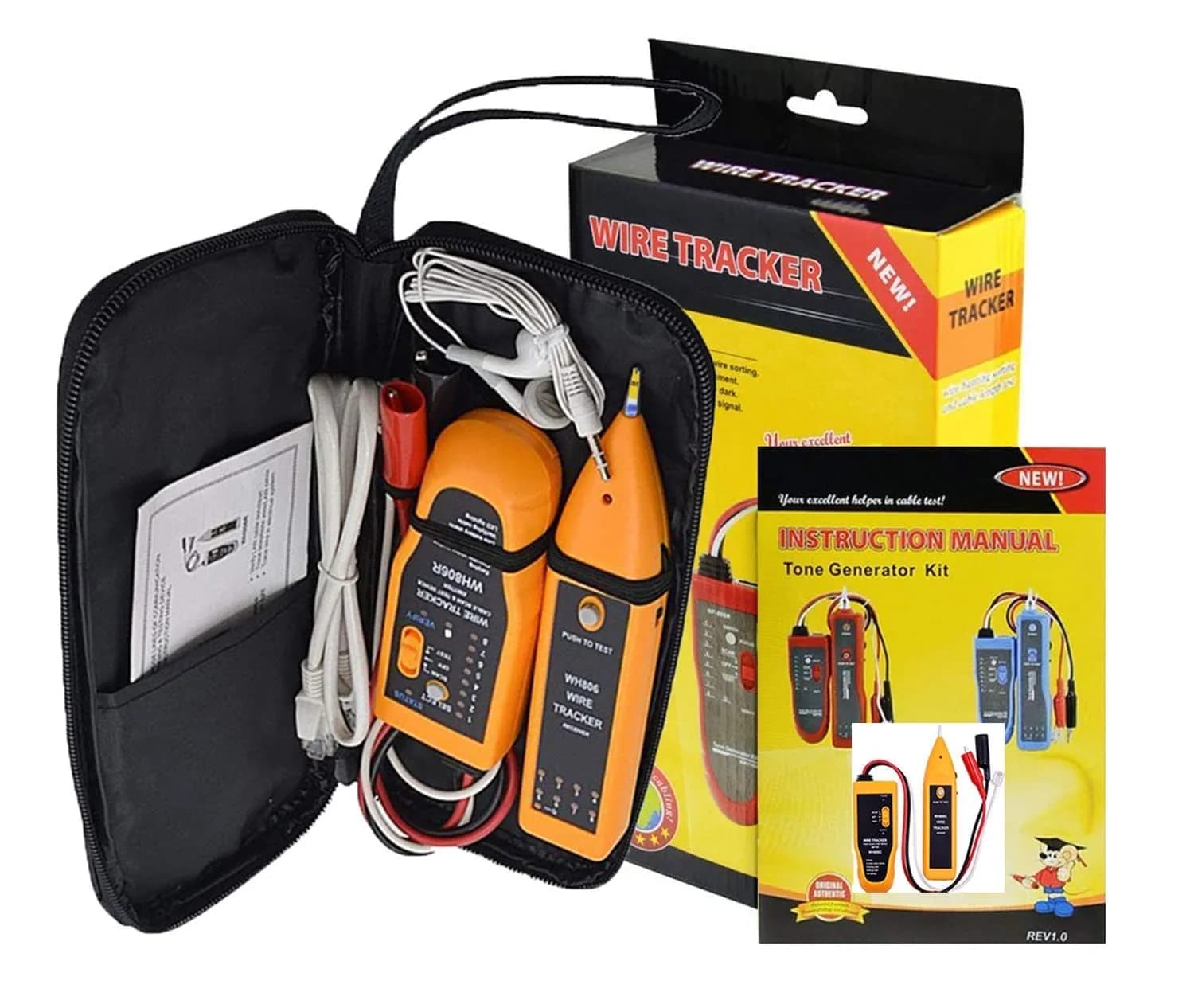

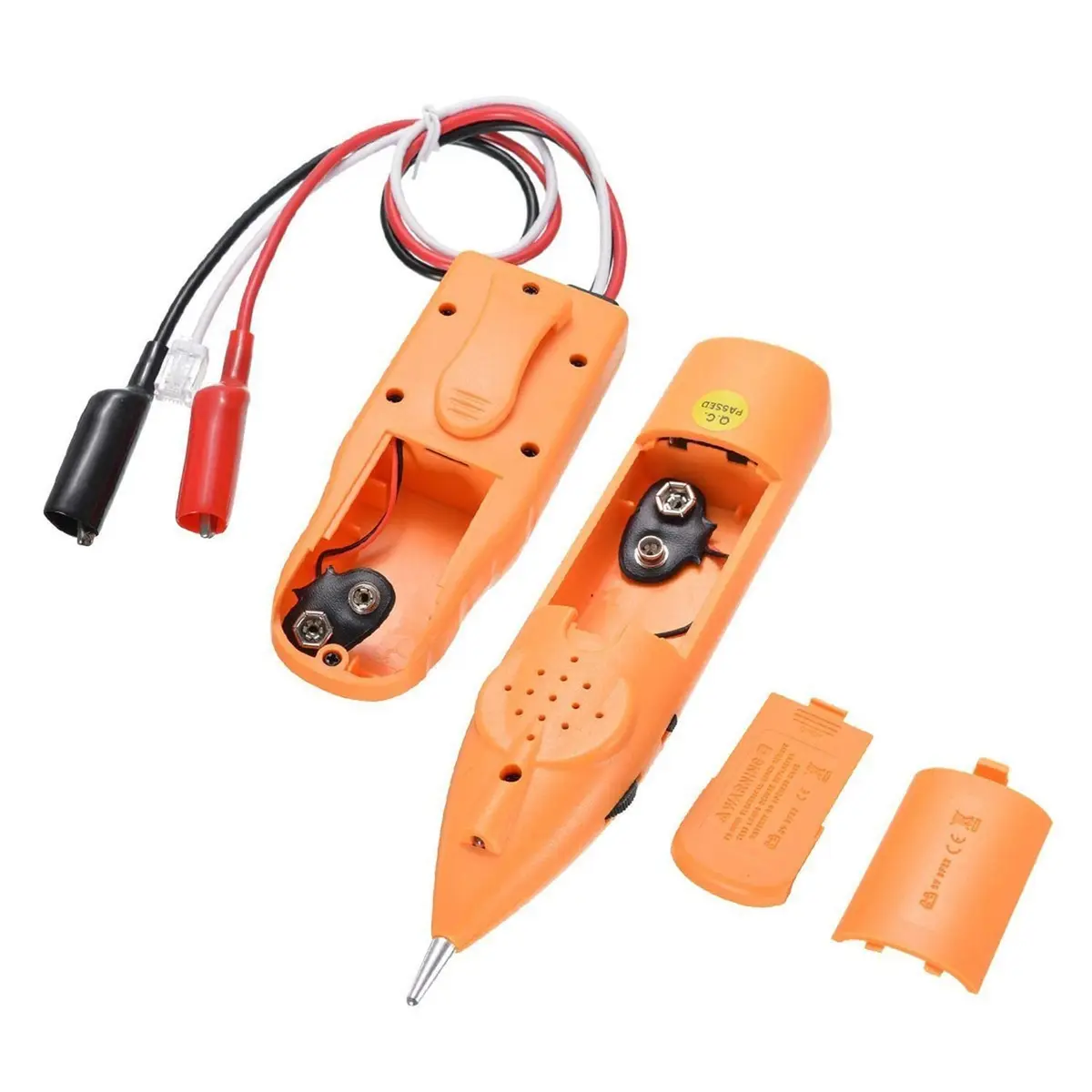

iMBAPrice WH806R Network Cable Tester & Wire Tracker with Probe & Earphone, RJ45 RJ11 Cat5 Cat6 Ethernet LAN Phone Cables (1-Pack)

• MULTIFUNCTION NETWORK CABLE TESTER & WIRE TRACKER: Combines cable tracing, tone generation, continuity testing, and wire fault detection in one convenient tool for network and telephone installations
• RJ45 & RJ11 CABLE COMPATIBILITY: Works with Ethernet and telephone cabling, including RJ45, RJ11, Cat5, Cat5e, Cat6, UTP, and STP cables, making it suitable for networking and telecom applications
• QUICKLY LOCATE CABLES & WIRE RUNS: Tone tracing function helps identify and follow cable paths through walls, ceilings, wiring closets, patch panels, and network cabinets without damaging insulation
• CONTINUITY & WIRE MAP TESTING: Tests cable continuity and helps diagnose common wiring faults including opens, shorts, crossed pairs, miswires, and damaged cable runs

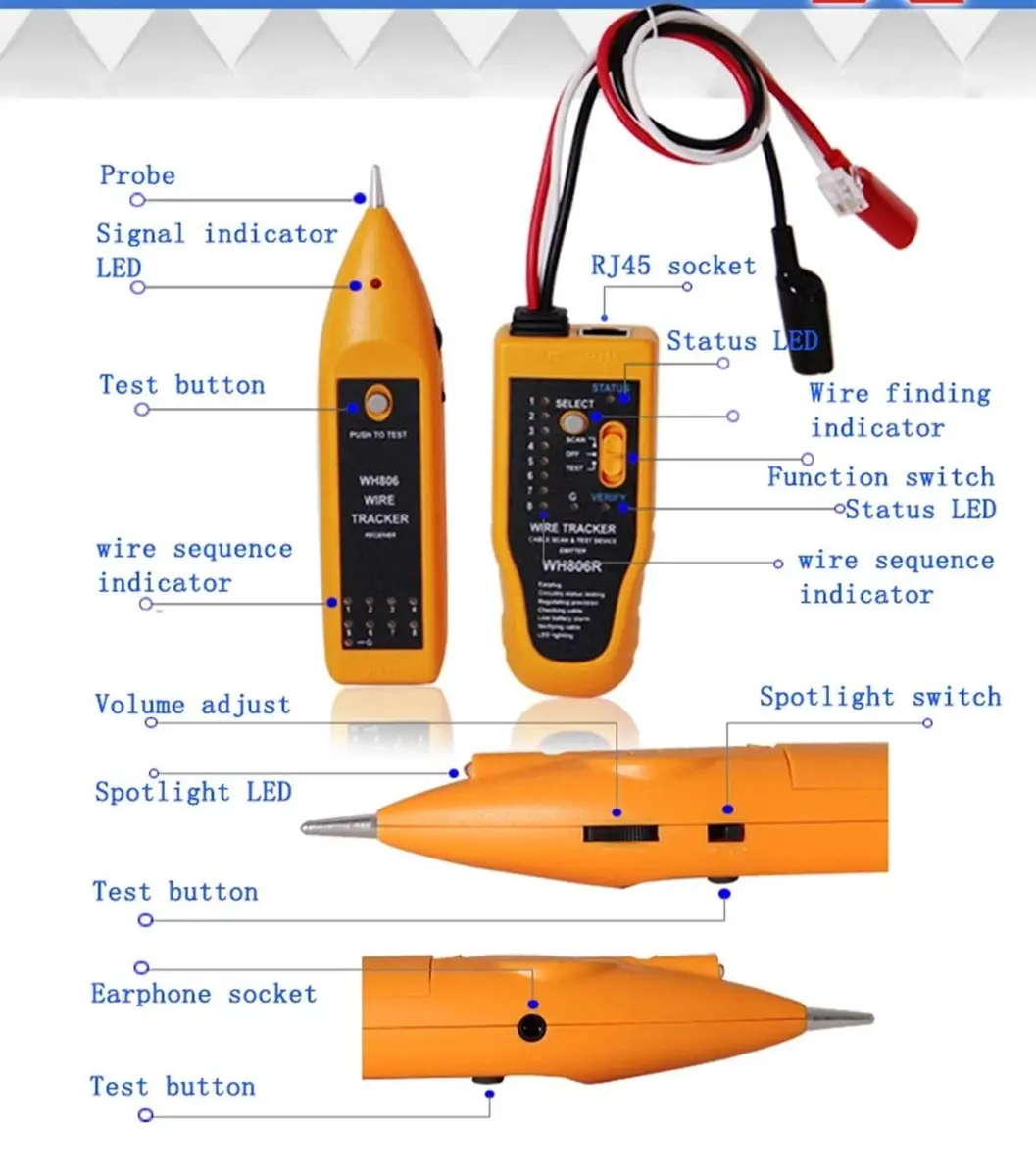

• PROBE, EARPHONE & ADJUSTABLE SENSITIVITY: Includes a probe and earphone for improved signal detection in noisy environments, plus adjustable sensitivity for accurate cable identification
• PROFESSIONAL & DIY APPLICATIONS: Suitable for network installers, telecommunications technicians, electricians, CCTV installers, home networking projects, and structured cabling maintenance
• LED INDICATION & LOW-VOLTAGE ALERTS: Features LED indicators and low-voltage alert system to enhance usability and ensure reliable performance in both professional and residential applications

• Prepare the Cable and Tester — Ensure the cable you wish to test is disconnected from active network equipment. Insert batteries (not included) into the tester and the probe unit. Select the appropriate connector (RJ45 for Ethernet, RJ11 for phone) on the tester.
• Generate Tone and Trace Cable — Connect the tester to one end of the cable. Activate the tone generator function. Use the probe, with the earphone connected, to sweep along the cable path. Listen for the tone to locate the specific cable run.
• Test Continuity and Wire Map — Connect the tester to both ends of the cable (or use the probe to test continuity on a single end if tracing). The LED indicators will show continuity, shorts, opens, or miswires, helping you diagnose wiring integrity issues.
• Adjust Sensitivity and Identify — If tracing in a noisy environment or with many cables, adjust the probe's sensitivity dial to pinpoint the signal accurately. The low-voltage alert and LED indicators provide clear feedback for reliable identification and testing.
