Teansic HDMI Female 19-Pin Breakout PCB Board with 2.54mm Straight Pin (2-Pack) | Essential for Hardware Debugging & Signal Testing

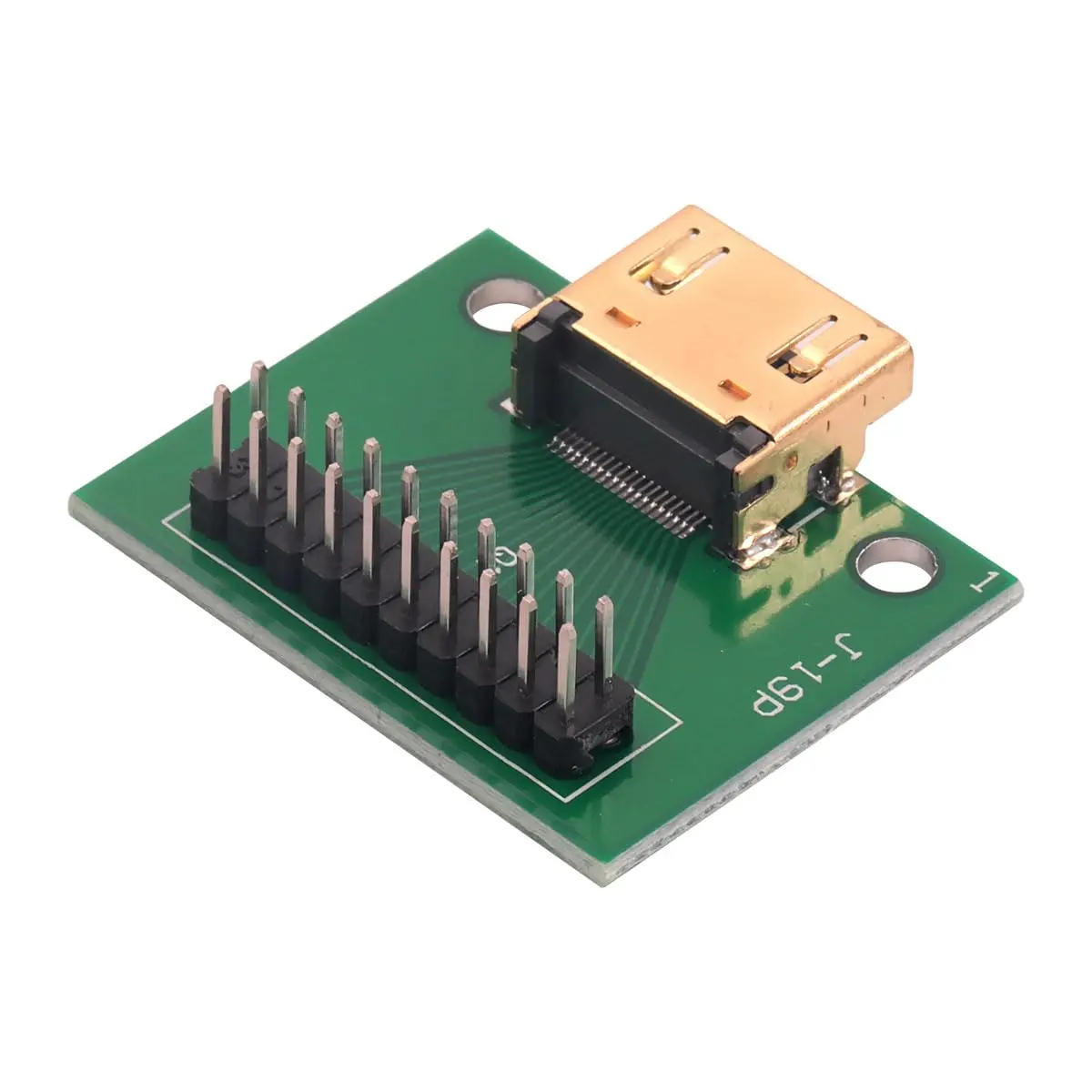

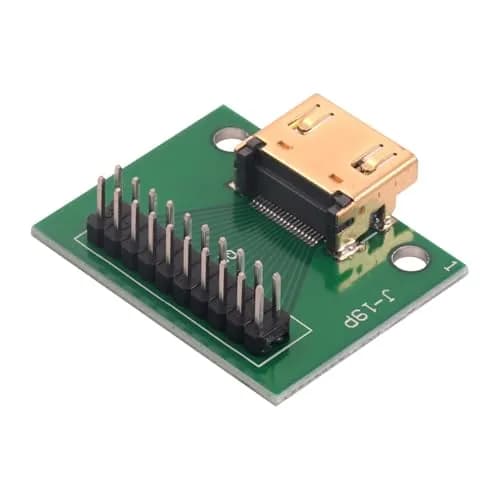

• HDMI Female Connector Test Board -- This test board provides direct access to all 19 signal pins of a standard HDMI Type-A female connector. Each pin is connected to a clearly labeled 2.54mm pitch header, allowing for individual signal testing.

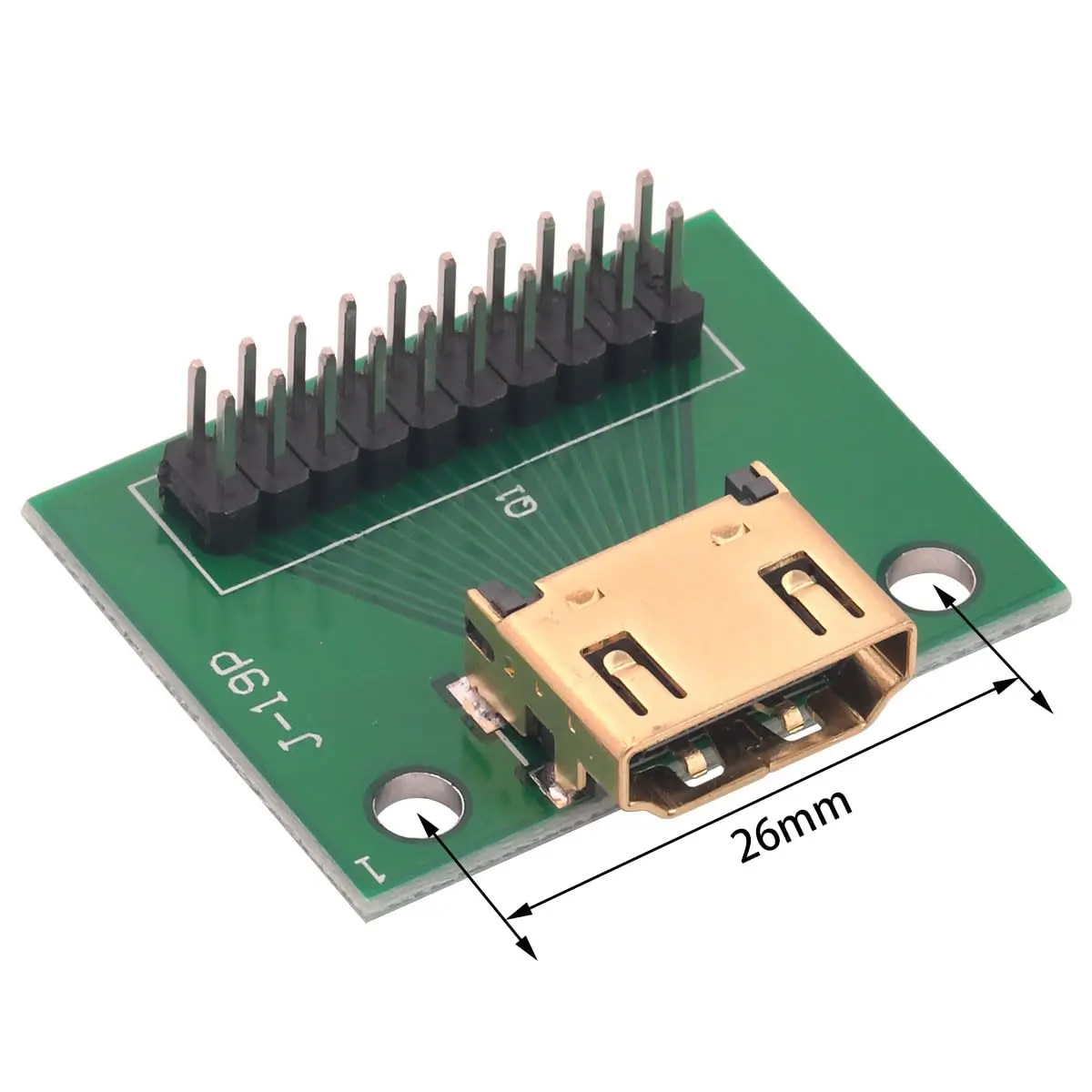

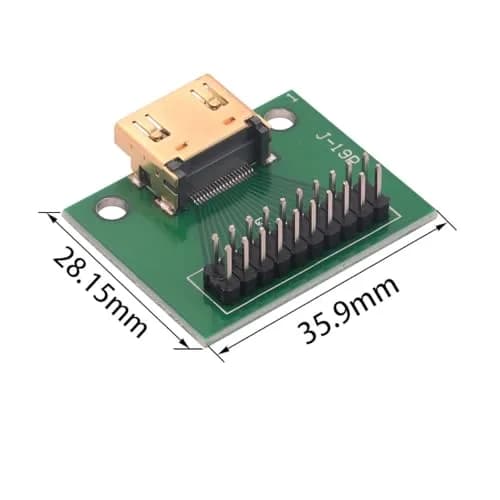

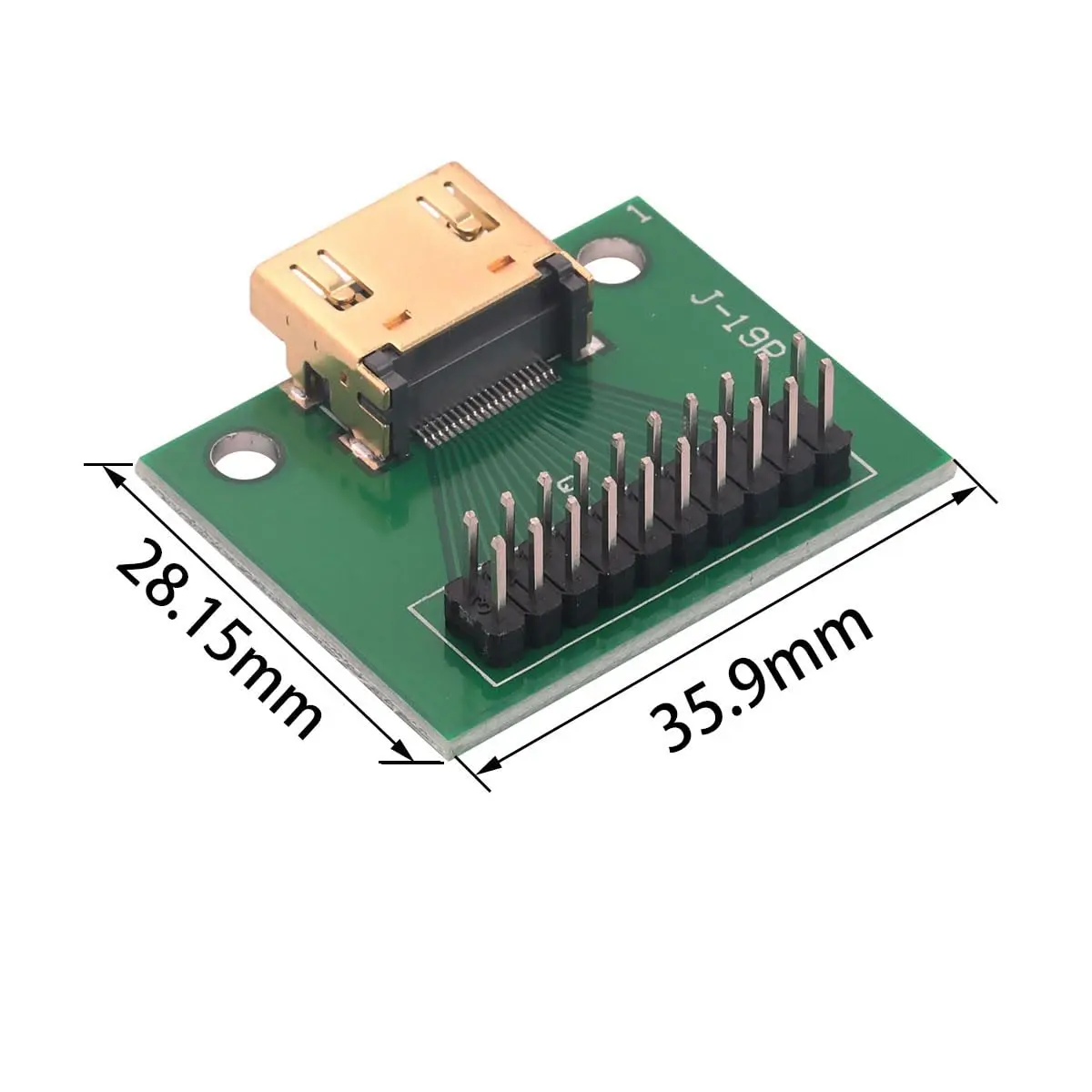

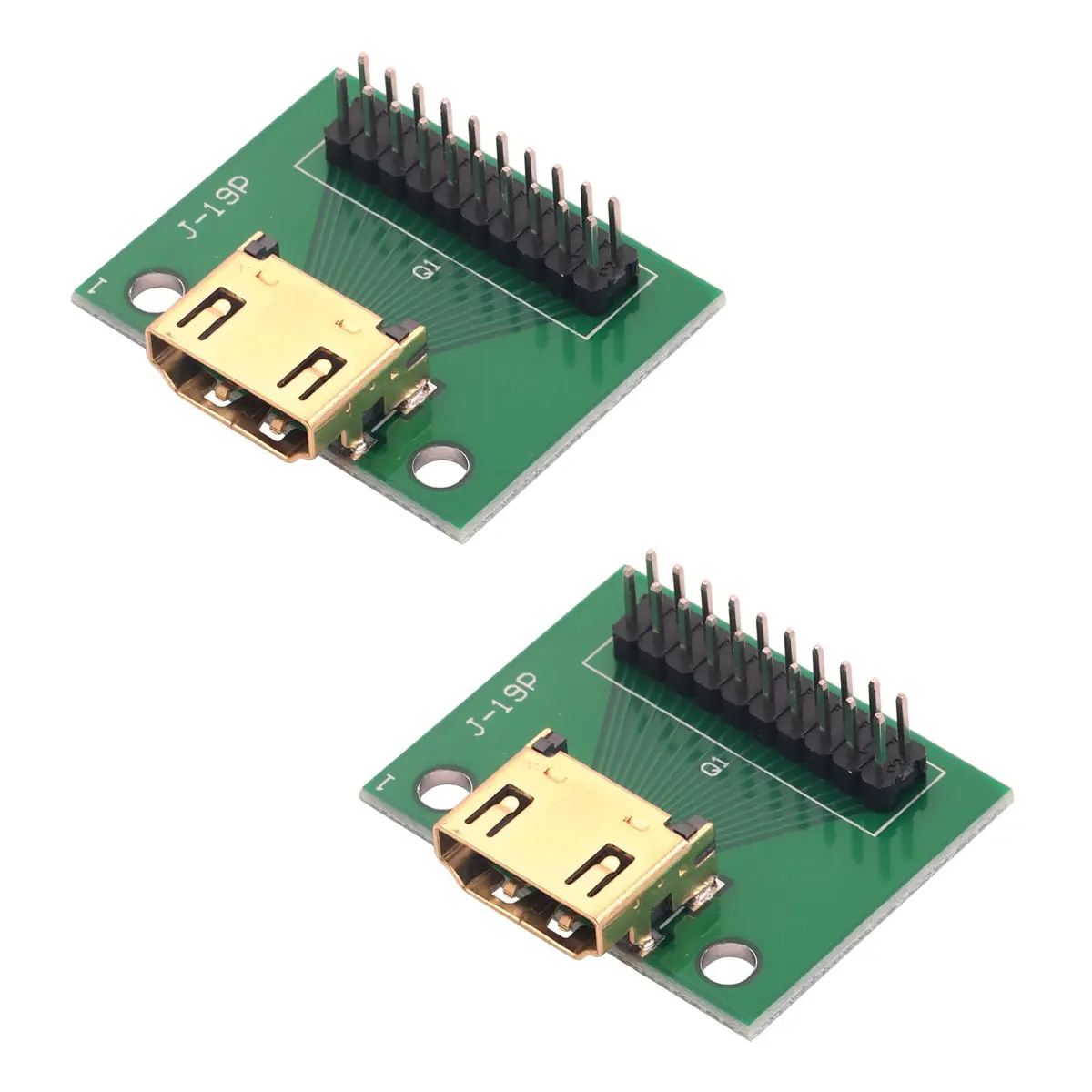

• Specifications -- Name: HDMI 19-Pin Female Connector Test Board; Dimensions: 28mm x 35mm; Pin Pitch: 2.54mm; PCB: FR-4 fiberglass board; Thickness: 1.0mm; Quantity: 2 pieces.
• Rugged and Durable Construction -- Manufactured from FR-4 fiberglass board with a green solder mask. The HDMI female connector features gold-plated contacts to ensure reliable and corrosion-resistant connections.

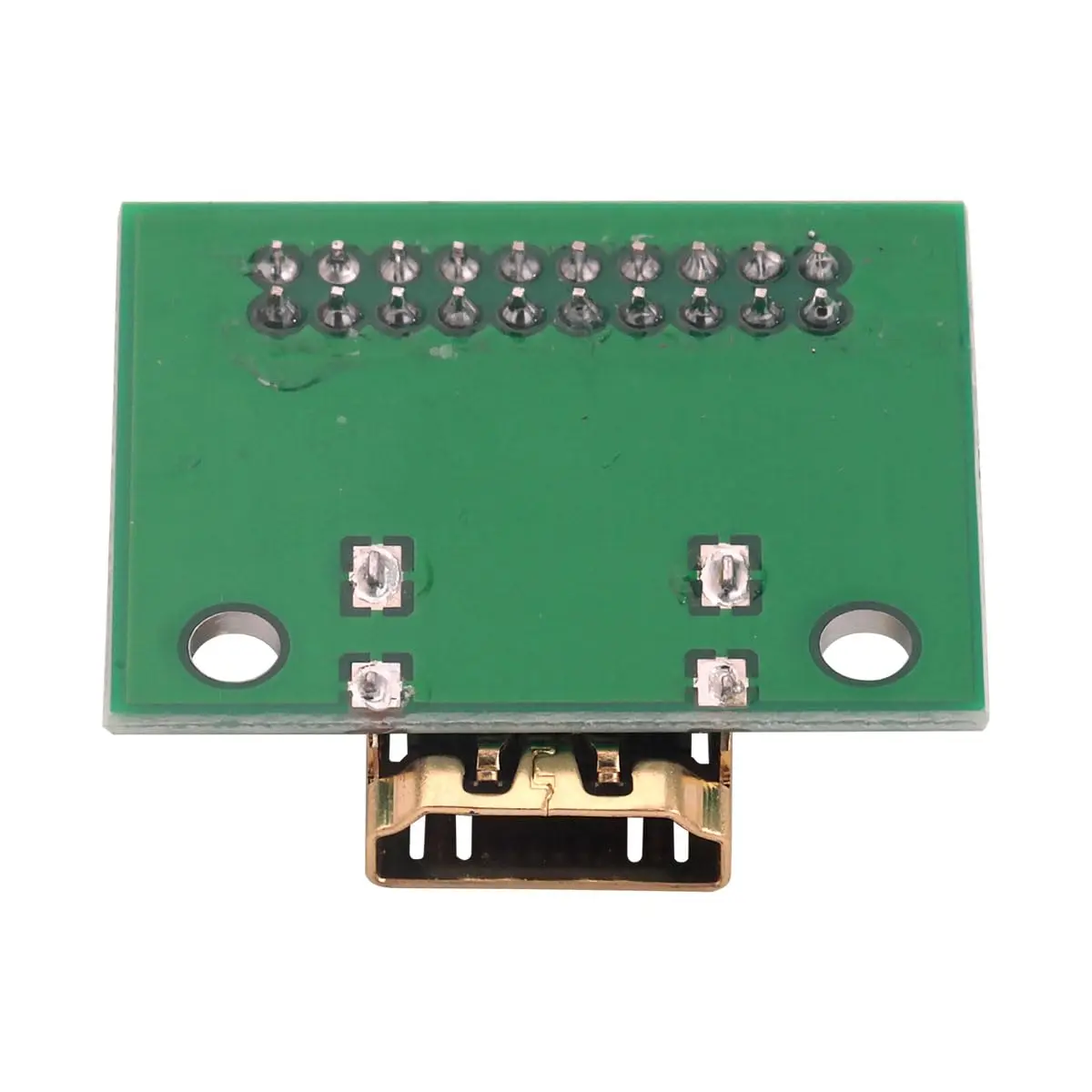

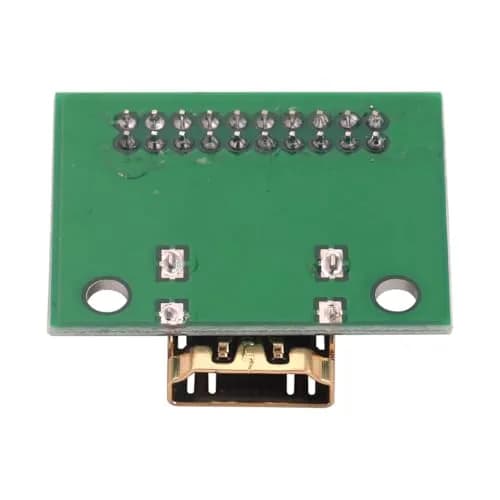

• Clear Markings -- The 2.54mm pin headers are pre-soldered, and the PCB clearly indicates the connection path from the HDMI 19-pin connector to the soldered pins. The board features two mounting holes for securing the circuit board.
• Applications -- This 19-pin HDMI female header test board is a practical tool designed for professionals who require direct access to HDMI signals. Whether you are developing HDMI-enabled hardware, verifying cable assemblies on a production line, or troubleshooting interface issues in consumer electronics, this board provides a straightforward, repeatable method for connecting test equipment to every pin of an HDMI interface.

• Connect HDMI Cable — Insert a standard HDMI cable into the female Type-A receptacle on the Teansic breakout board. Ensure the cable is fully seated to establish a proper electrical connection for all 19 pins.

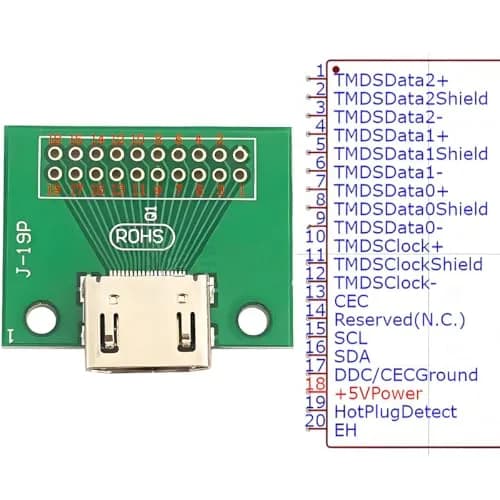

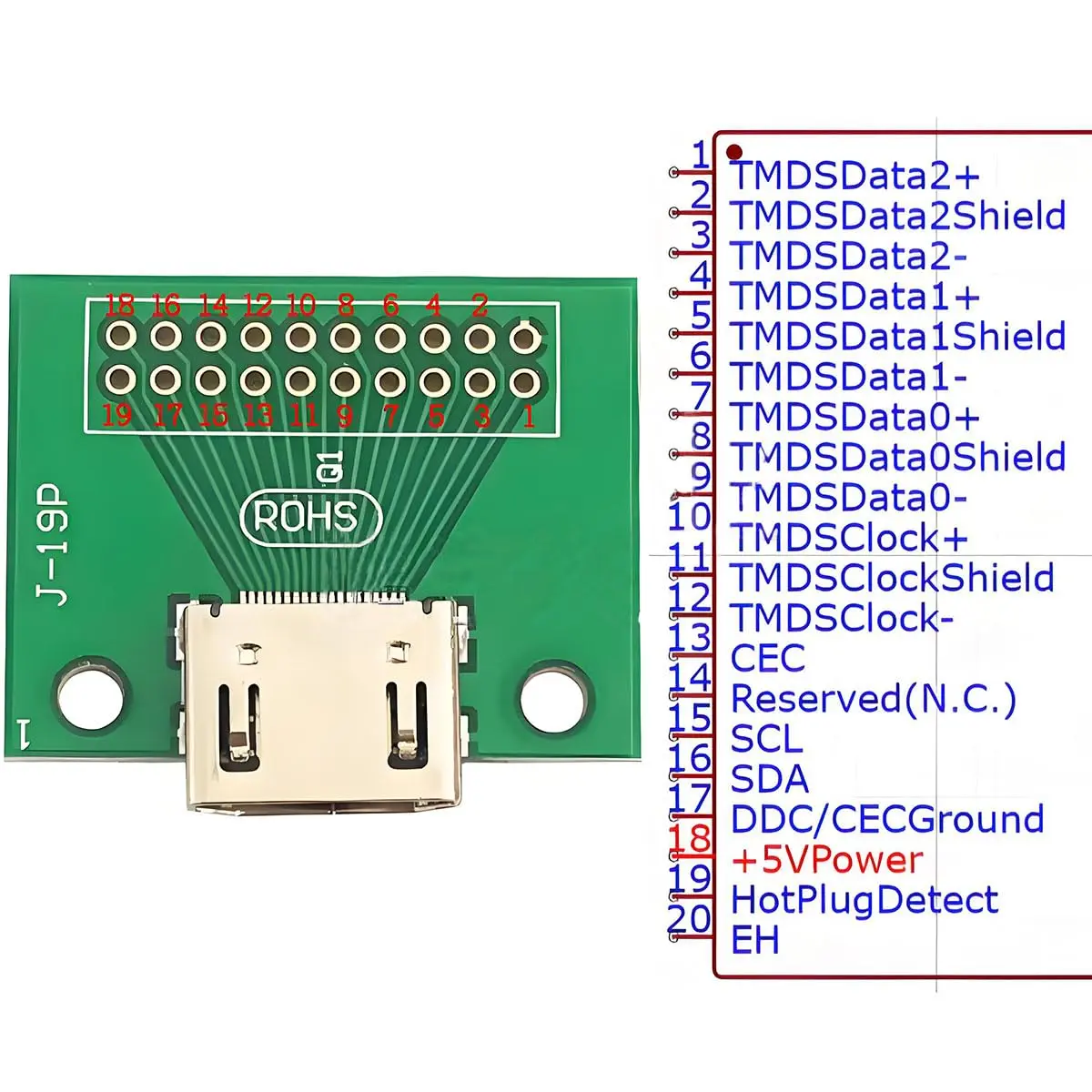

• Access Signals via Header Pins — Use test probes or connecting wires to access the individual HDMI signals available at the 2.54mm pitch straight header pins. Each pin is clearly labeled on the PCB, corresponding to its HDMI function.
• Perform Testing or Debugging — Connect your test equipment (e.g., oscilloscope, multimeter) to the header pins to measure signal quality, check continuity, or troubleshoot interface issues. The gold-plated contacts ensure reliable connections.
