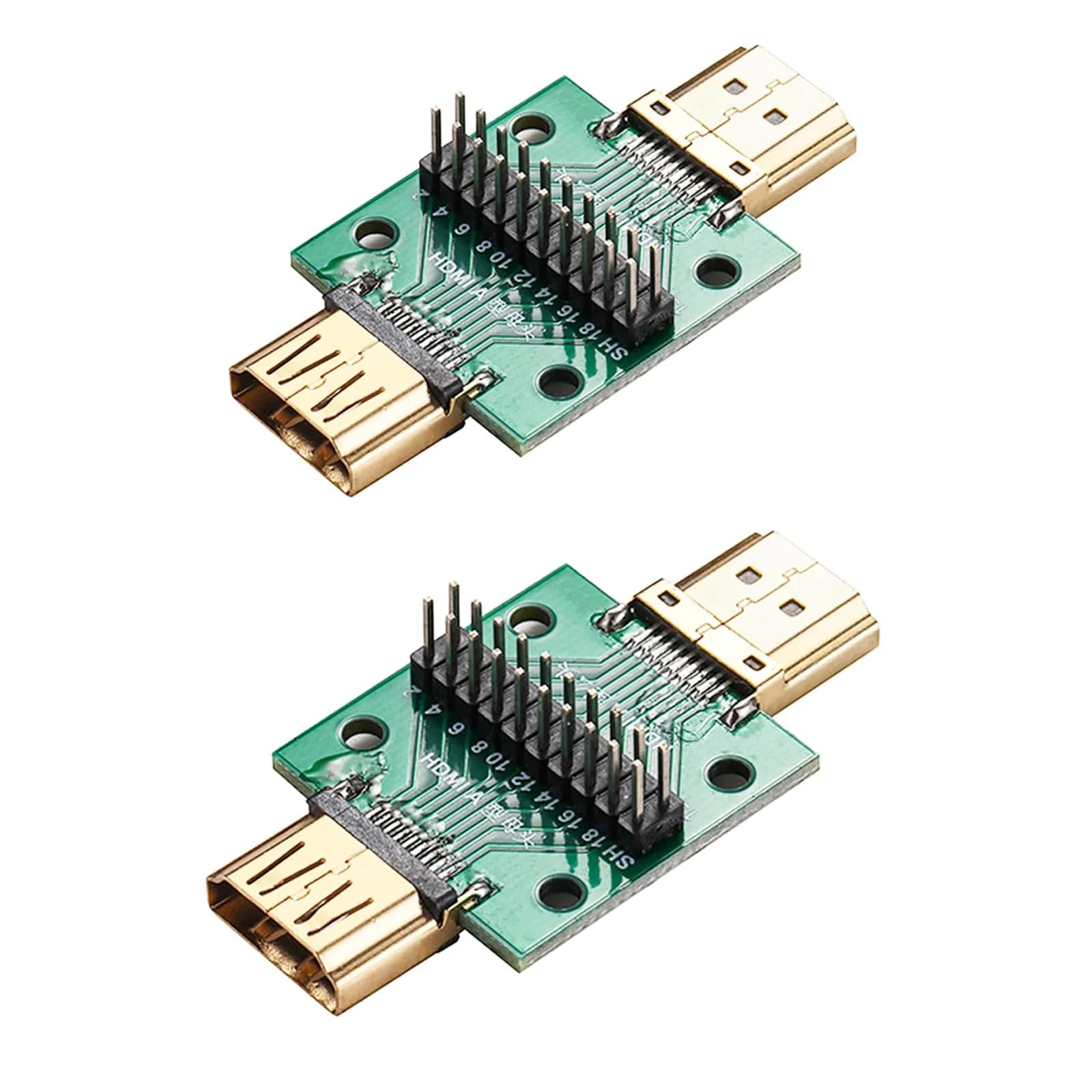

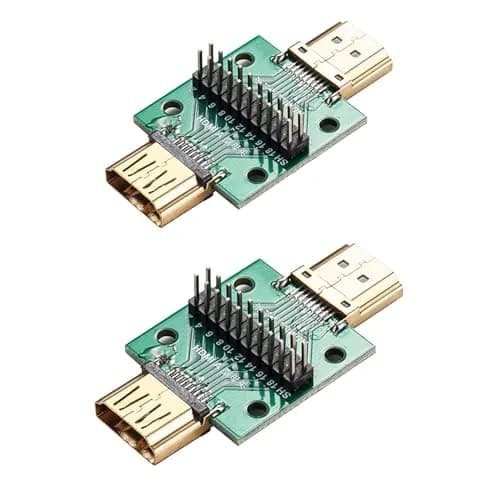

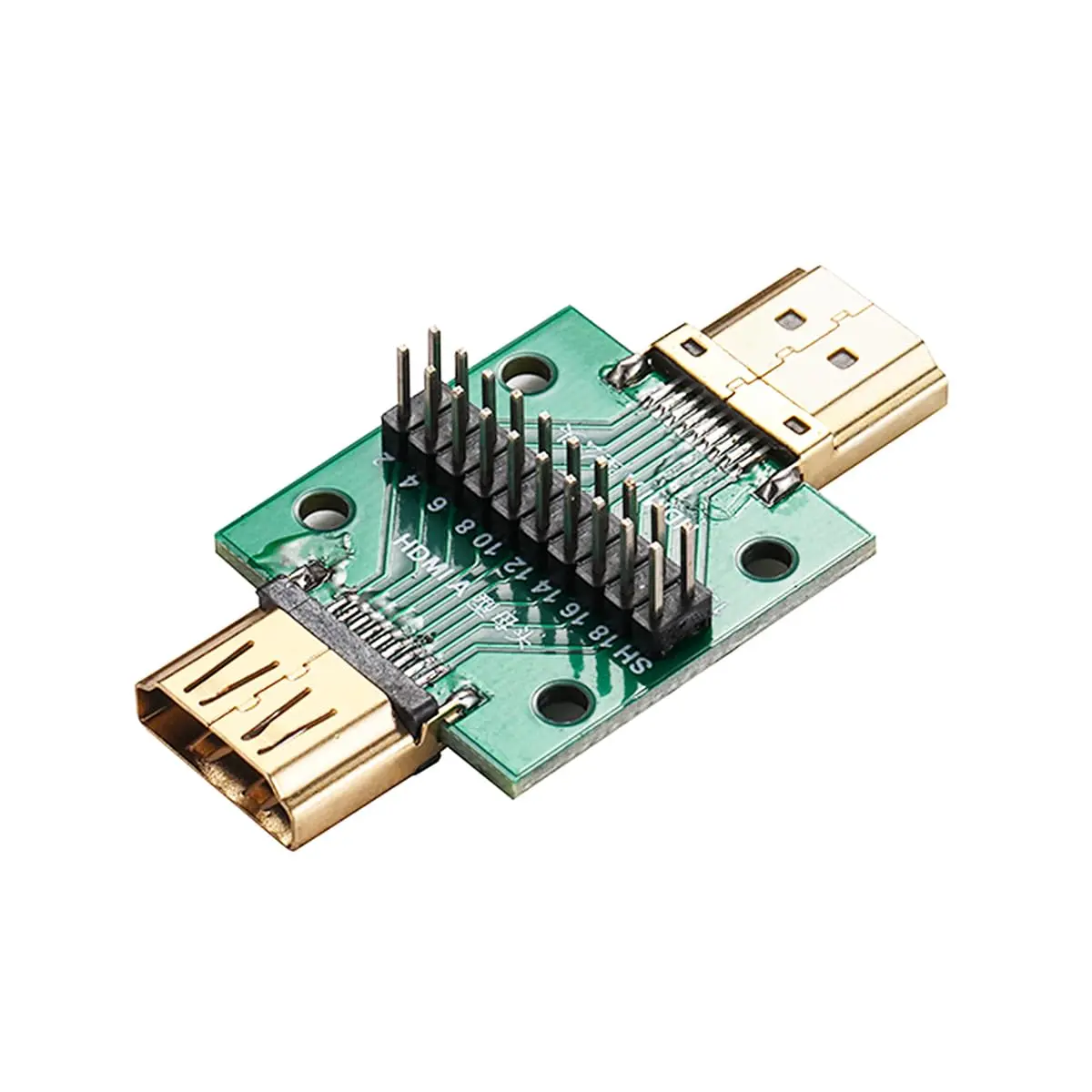

Teansic HDMI A Male to Female 19Pin Breakout Test Board (2-Pack) | Full 19 Pin Signal Breakout, Standard 2.54mm Pin Pitch

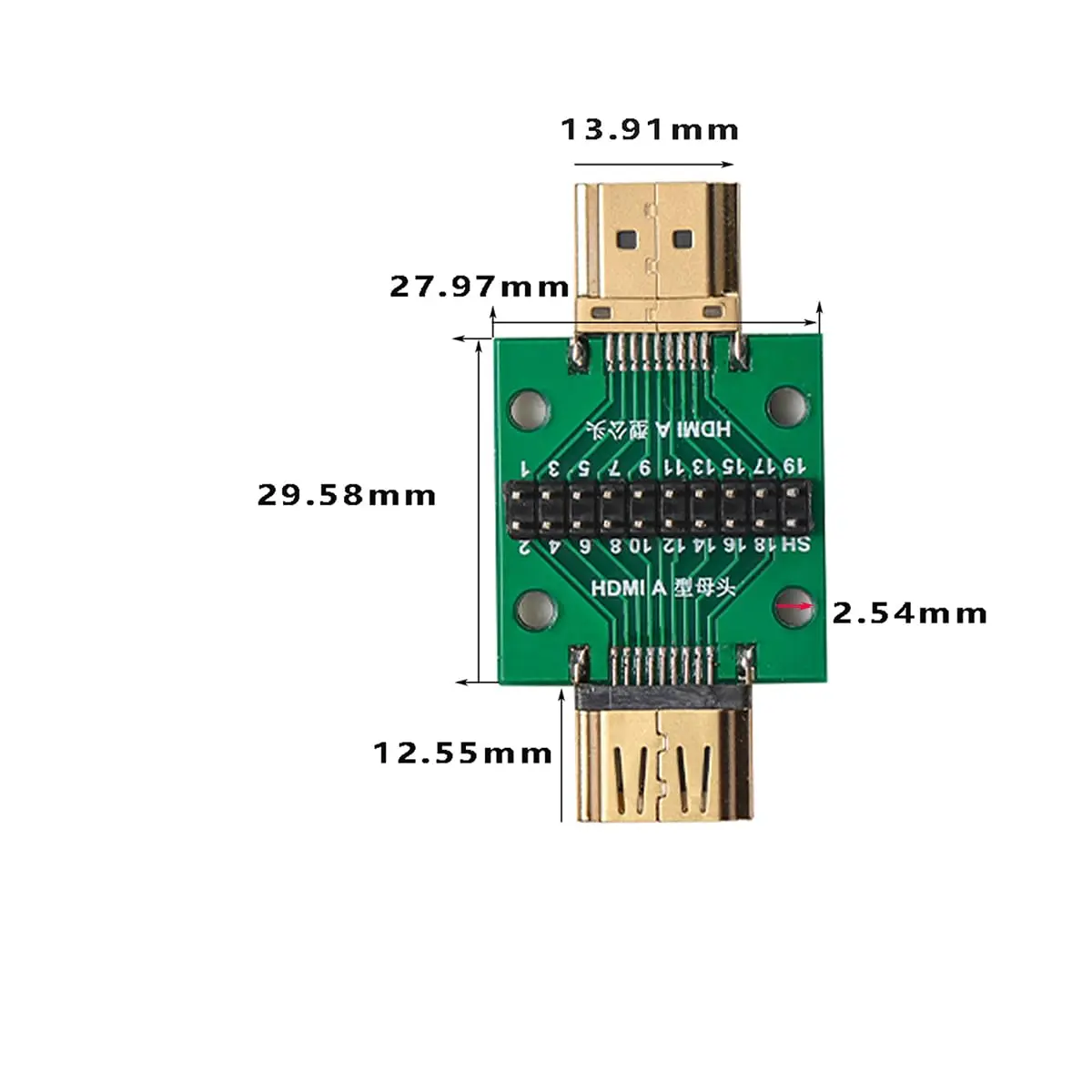

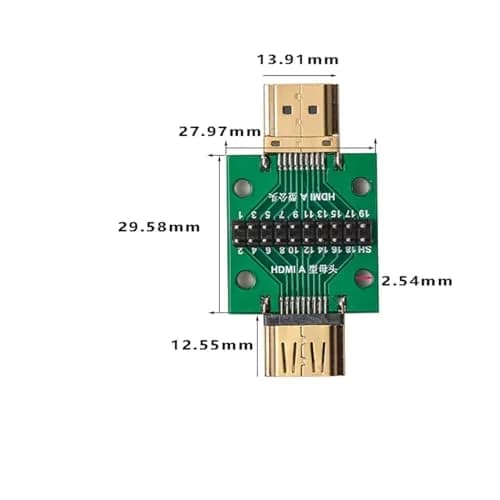

• Product includes -- 2pcs HDMI male-to-female test boards. The HDMI Type A connector is the most common type of HDMI connector specification. It is a standard HDMI port, not a mini HDMI port. The connector features a 19-pin design, with a width and thickness of 13.9 mm and 4.45 mm, respectively.

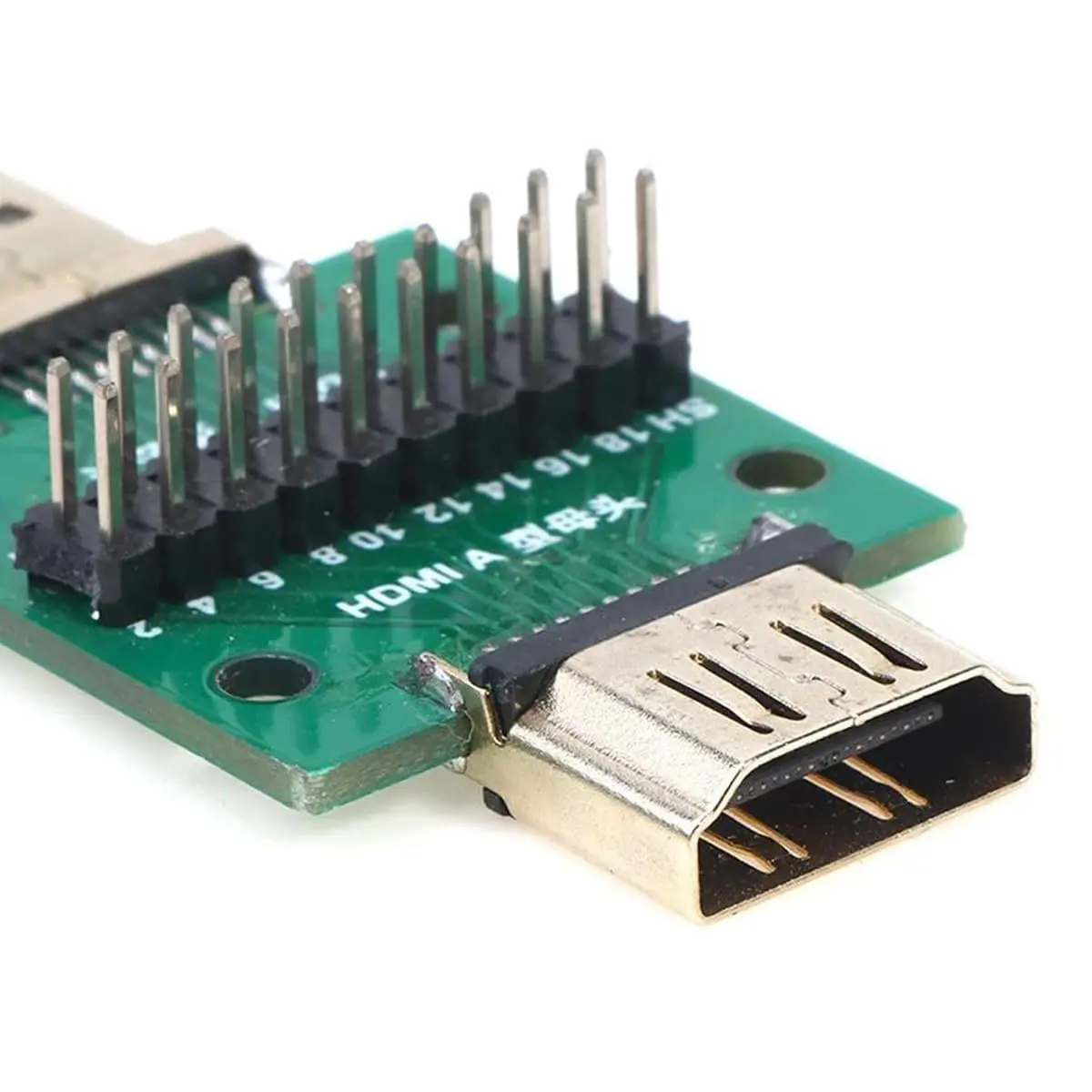

• Carefully Designed -- All pins have been soldered on the PCB board for stable performance and safer use; In addition, the PCB board also has shielding pins, which helps to operate normally in high-frequency radiation environments.
• High Quality -- The board adopts FR4 fiberglass board, which has excellent electrical and mechanical properties. It also has extremely high insulation and heat resistance.

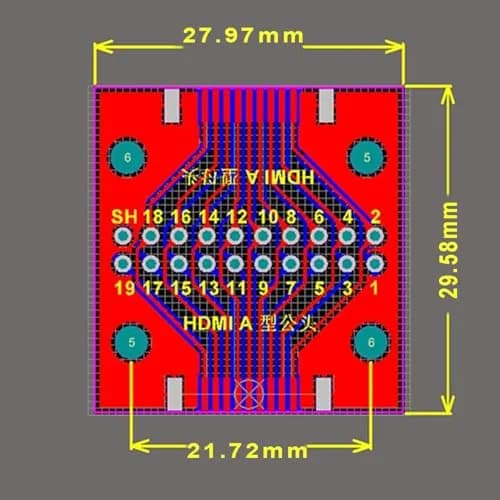

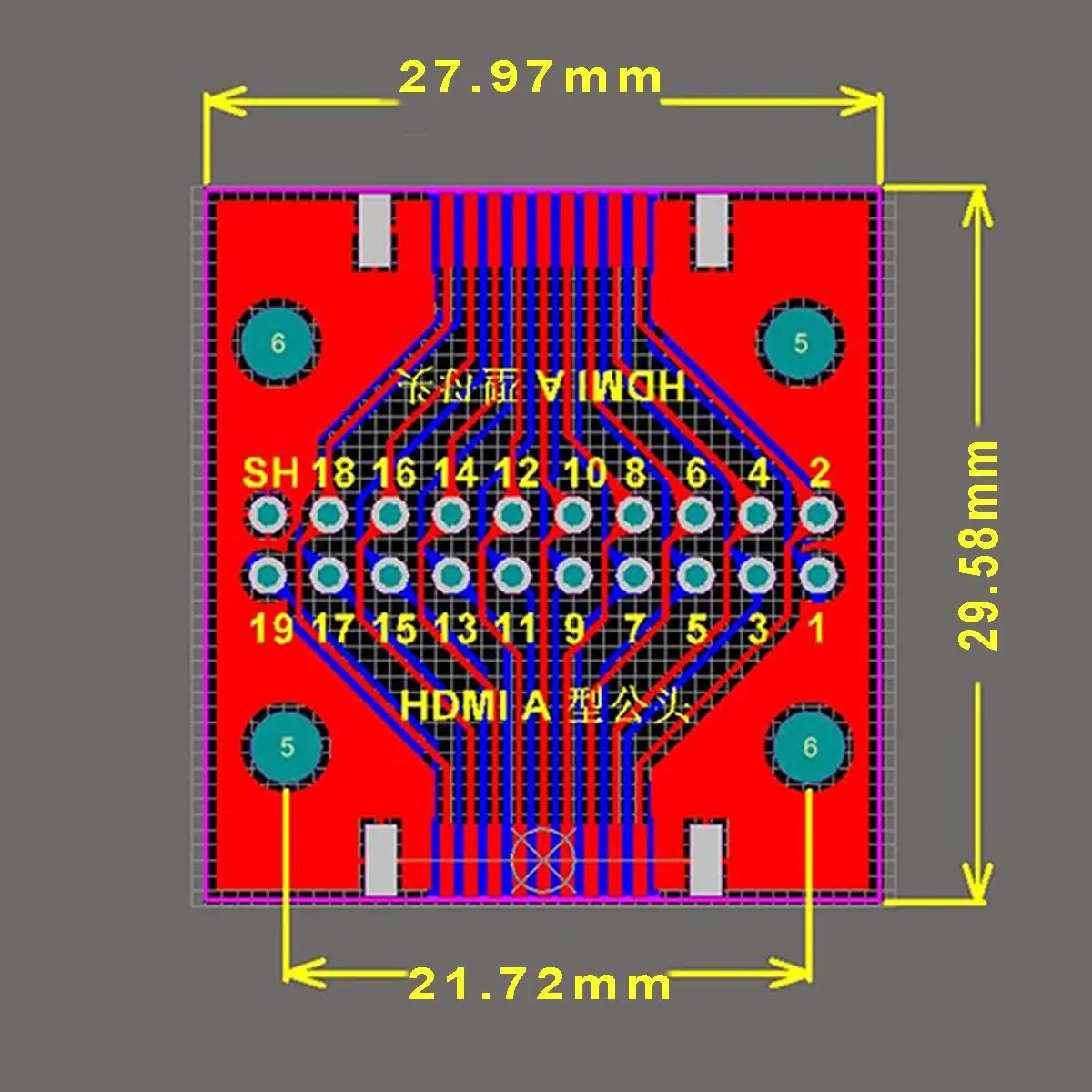

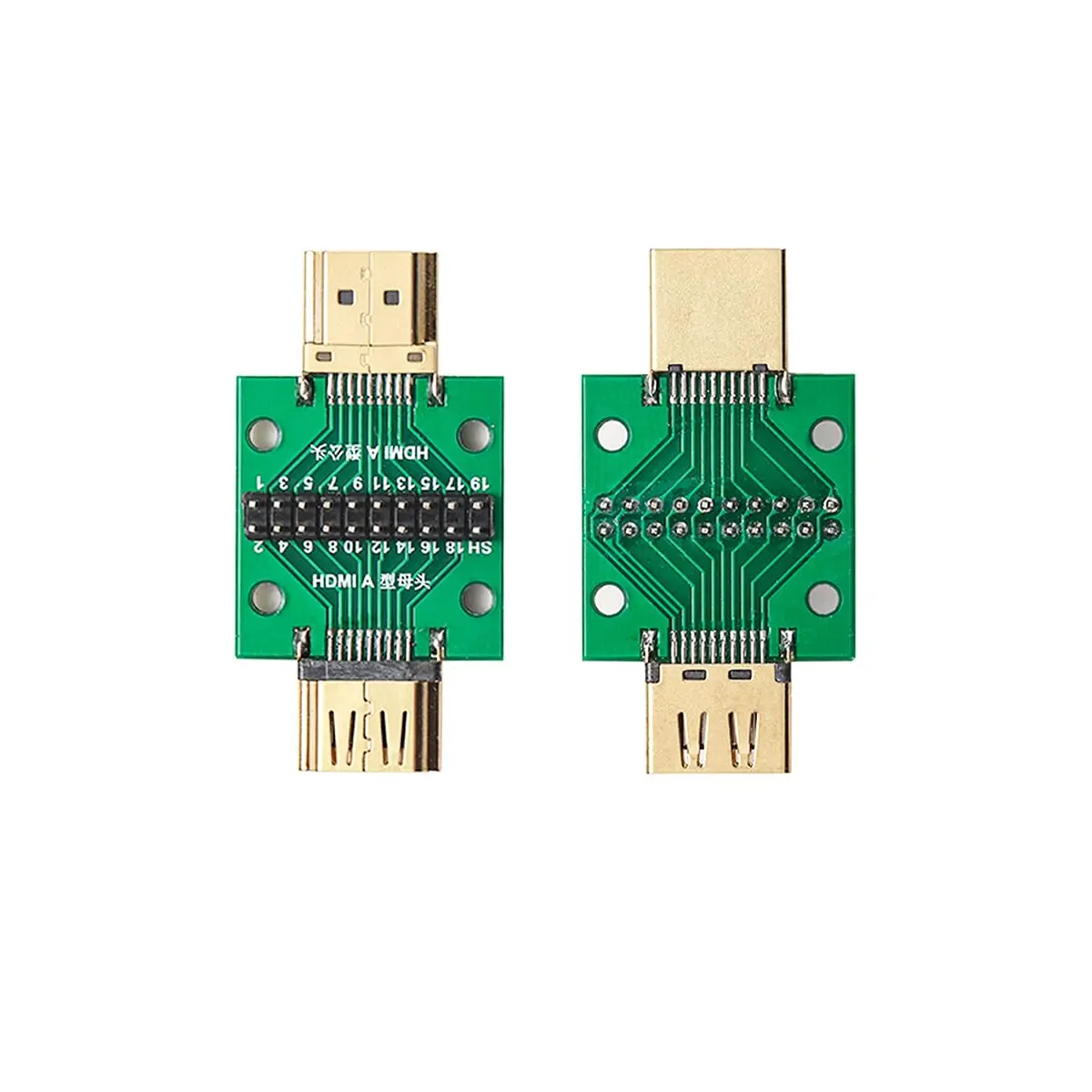

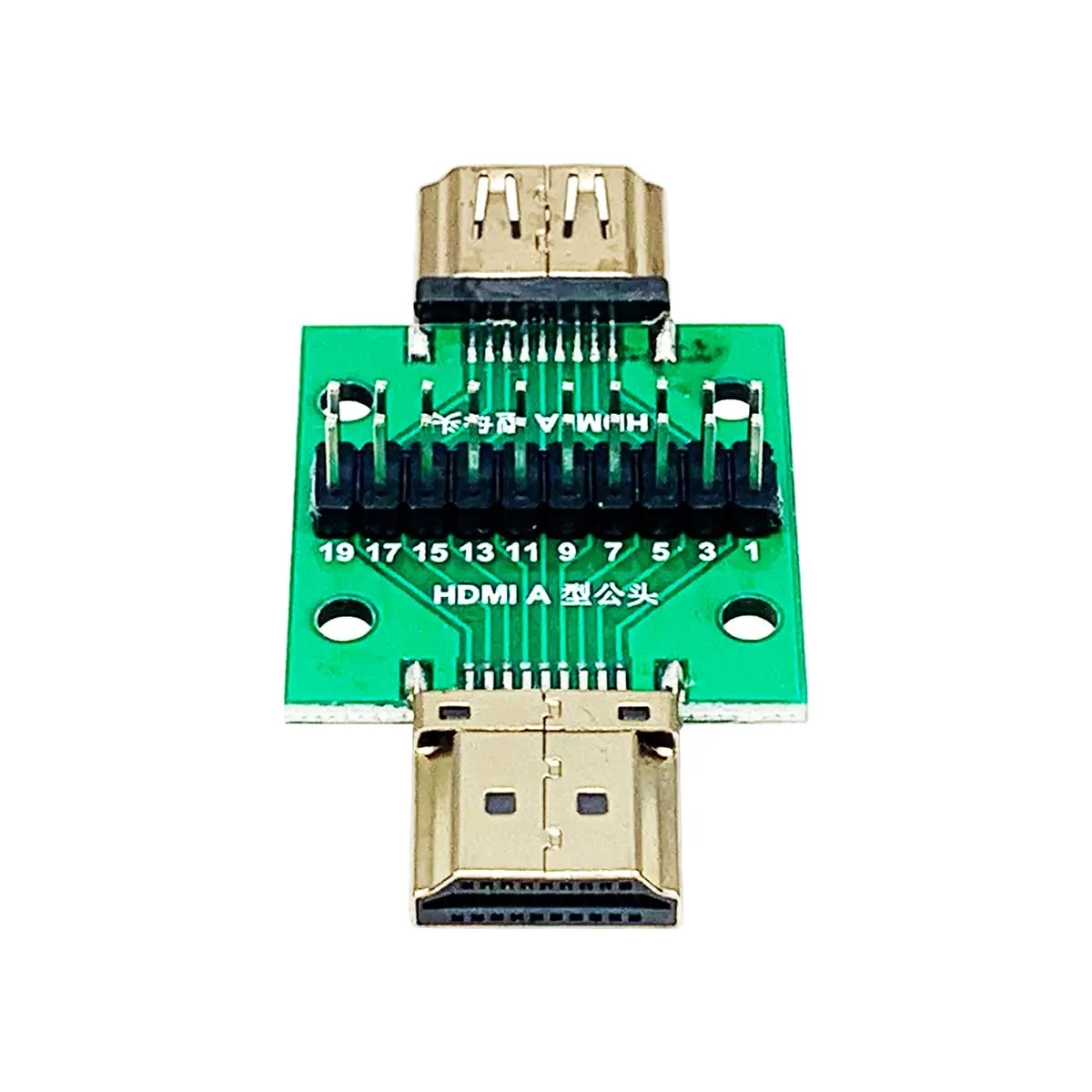

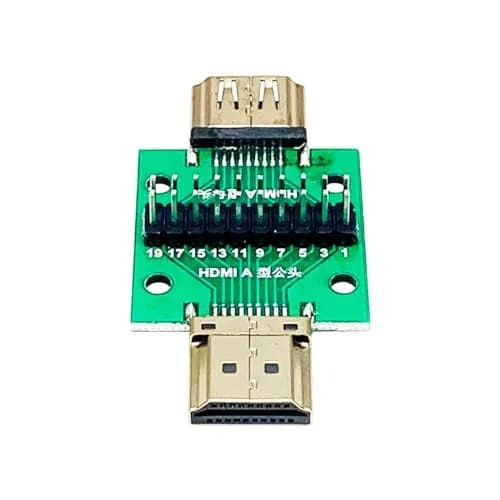

• Easy to Install --The PCB board has clear numerical labels and positioning holes for easy fixation and use.
• Widely Used -- HDMI A connectors are mainly used for power port maintenance in electronic products, or for power ports in DIY projects such as MP3 players, digital cameras, and cameras.

• Connect HDMI Cable — Plug a standard HDMI Type A male cable into the male connector on the breakout board. Ensure a secure fit for optimal signal transfer.
• Connect to Device/Receiver — Connect the female HDMI port on the breakout board to your display device, receiver, or another HDMI component. This allows for signal testing or adaptation.
• Test and Troubleshoot — Use appropriate testing equipment or observe signal flow through the breakout board's pins. The clear labels and stable connections aid in diagnosing issues or verifying signal integrity.
